Bysted Bollard

Name: Bysted Bollard
Brand: Peter Bysted

Design by

Peter Bysted

ColorCorten Steel

$ 6,310

Estimated delivery time: >8 weeks. Contact Customer Service

Lightsource: Built in LED

Free shipping

Free returns

Product spec sheet Professional tools

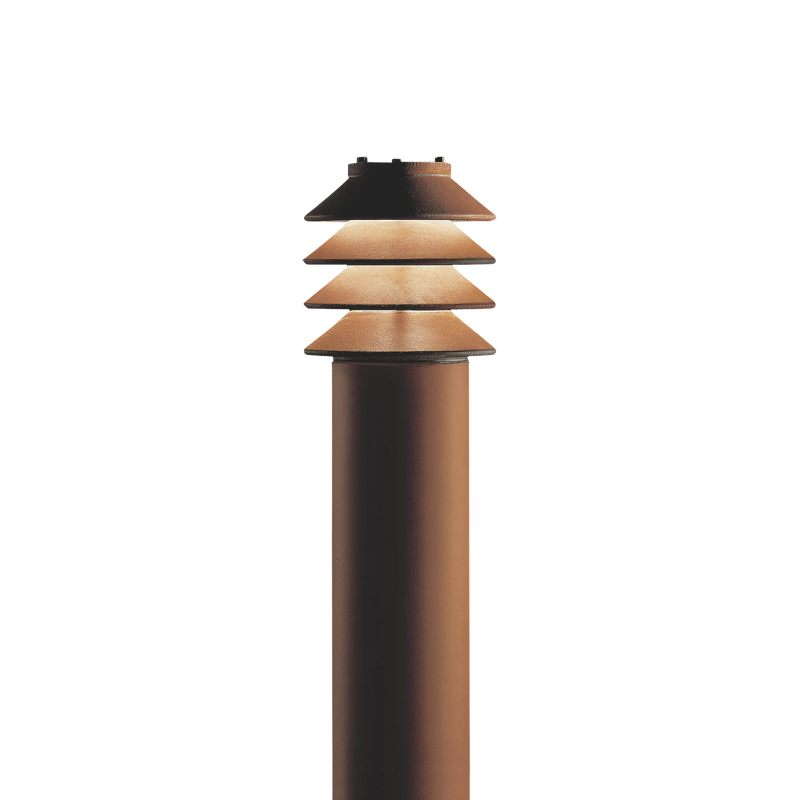

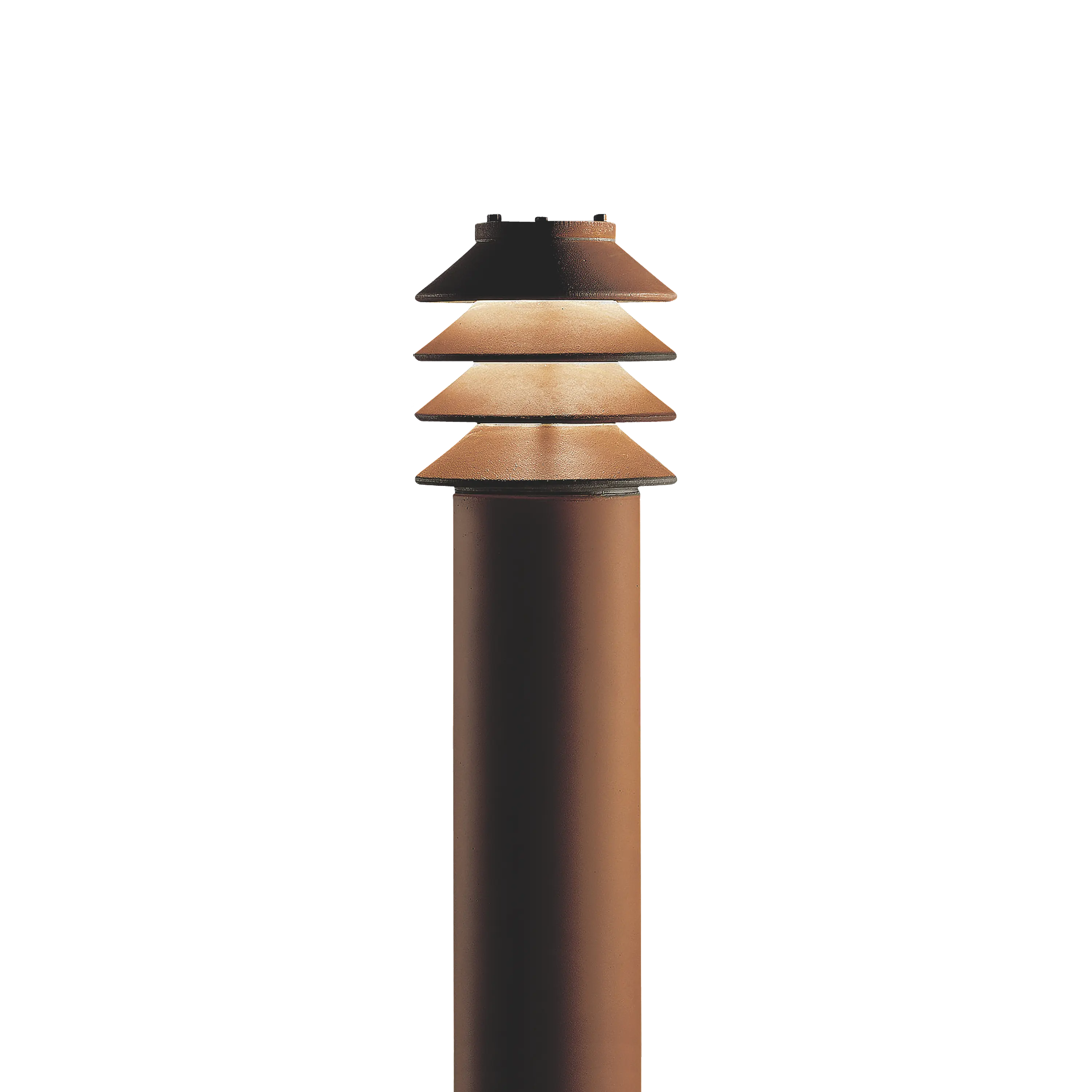

About the Bysted Bollard

Bysted was designed by Peter Bysted in 1975 and won second prize in a competition held by Louis Poulsen for outdoor lighting. The idea was to position the shades so as to create an interesting pattern on the ground. The choice of Corten steel as a material was also revolutionary at the time, and still constitutes a major component of the products identity.

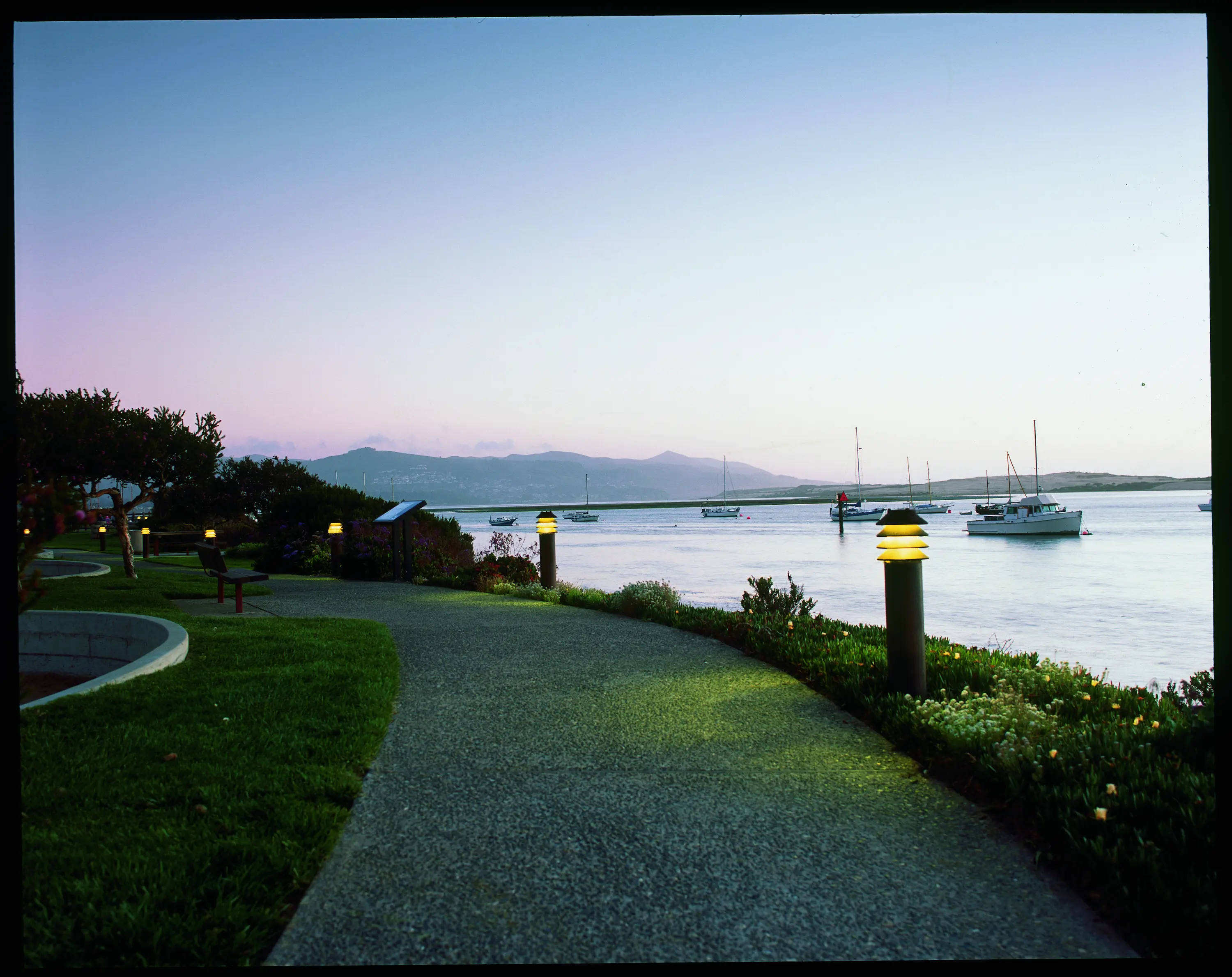

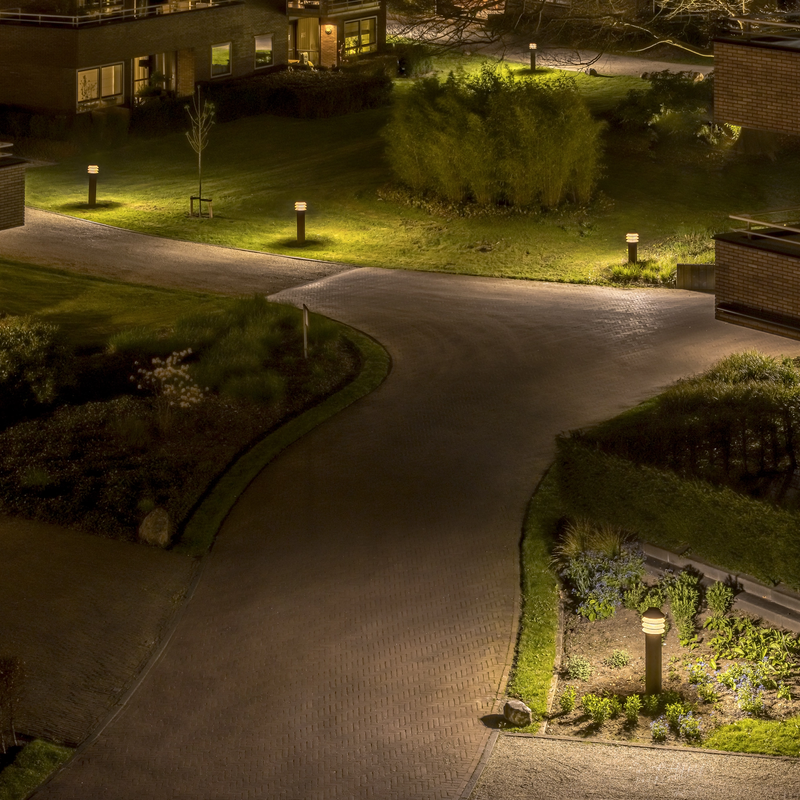

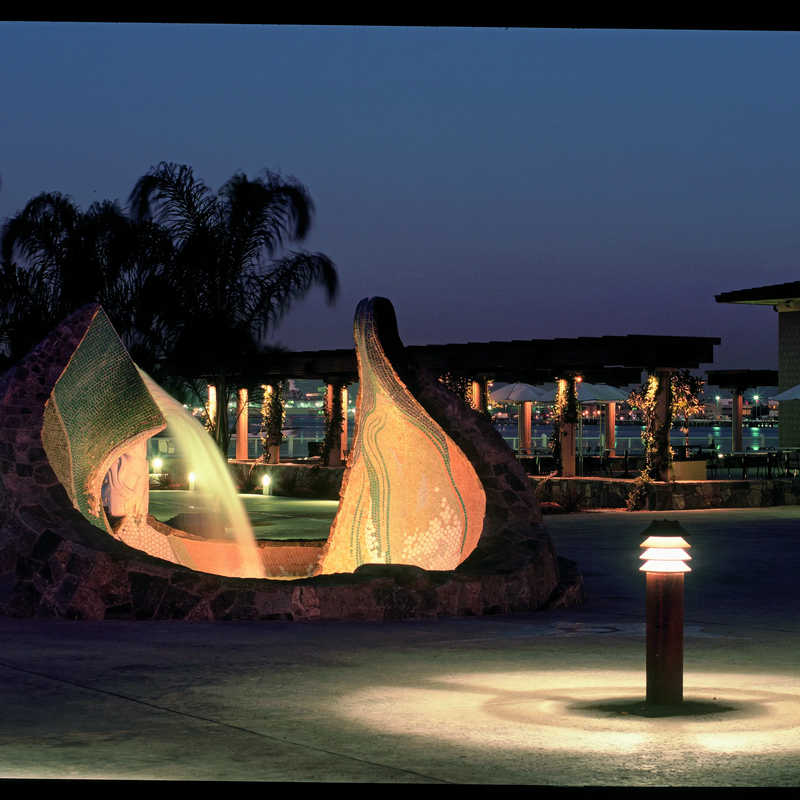

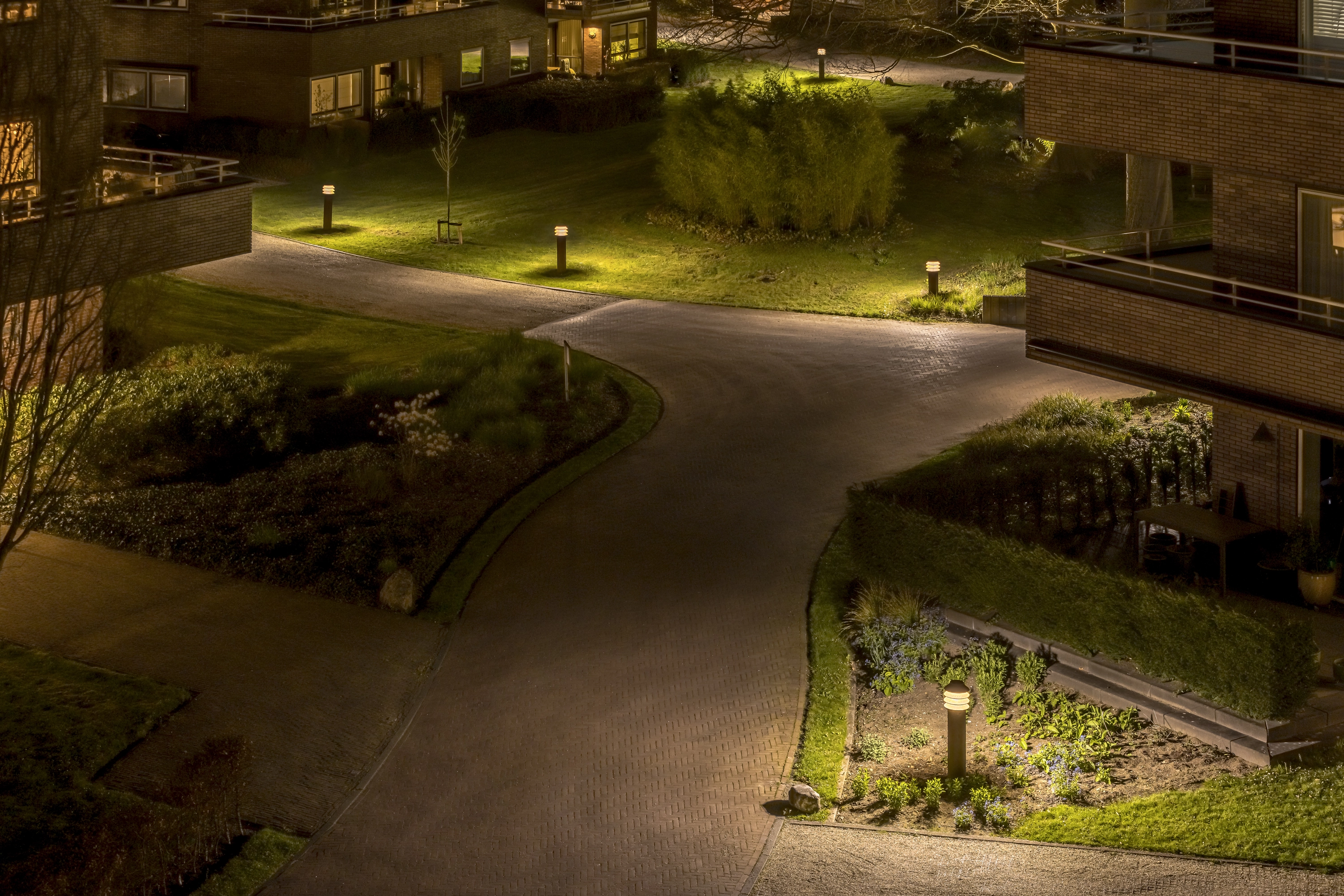

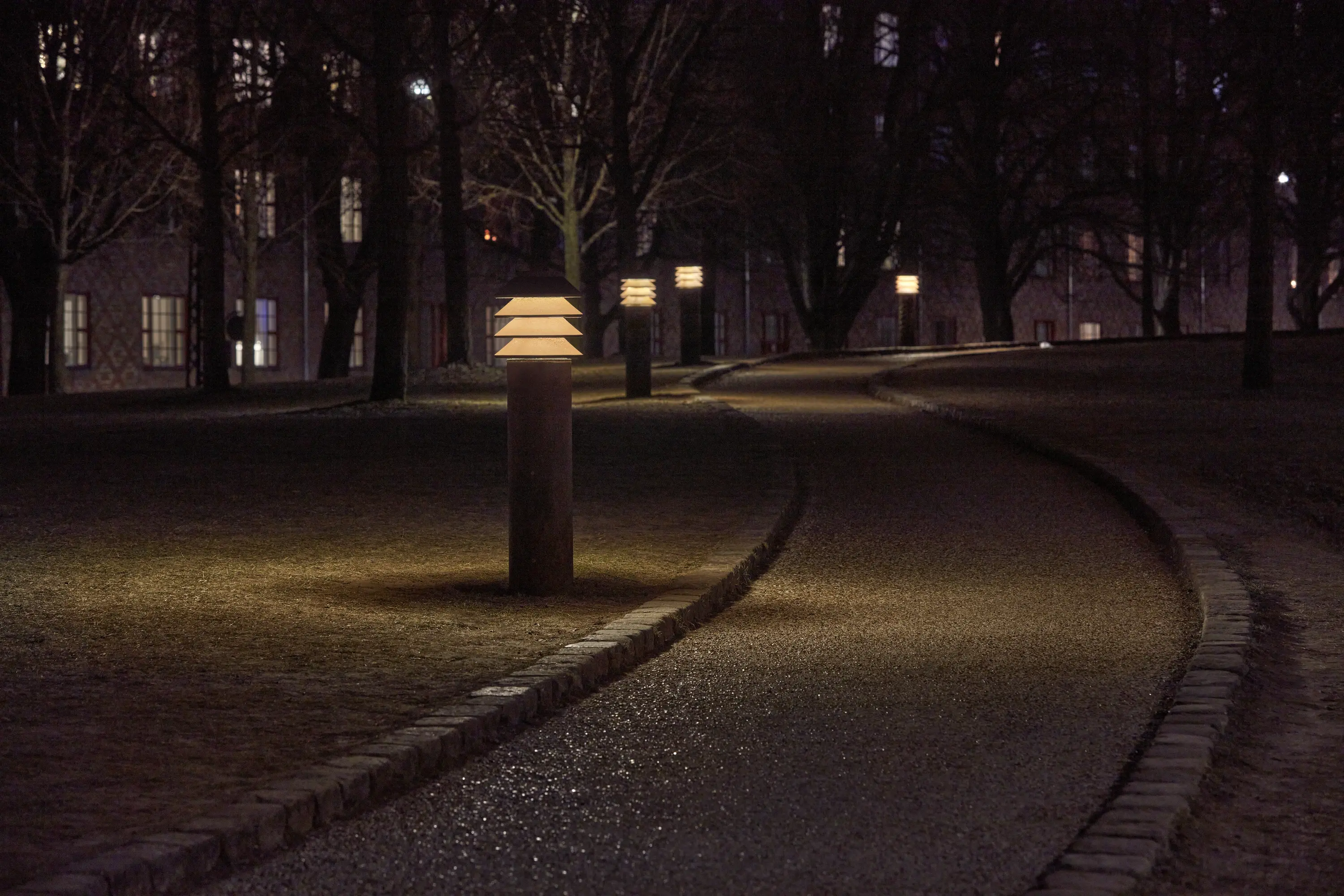

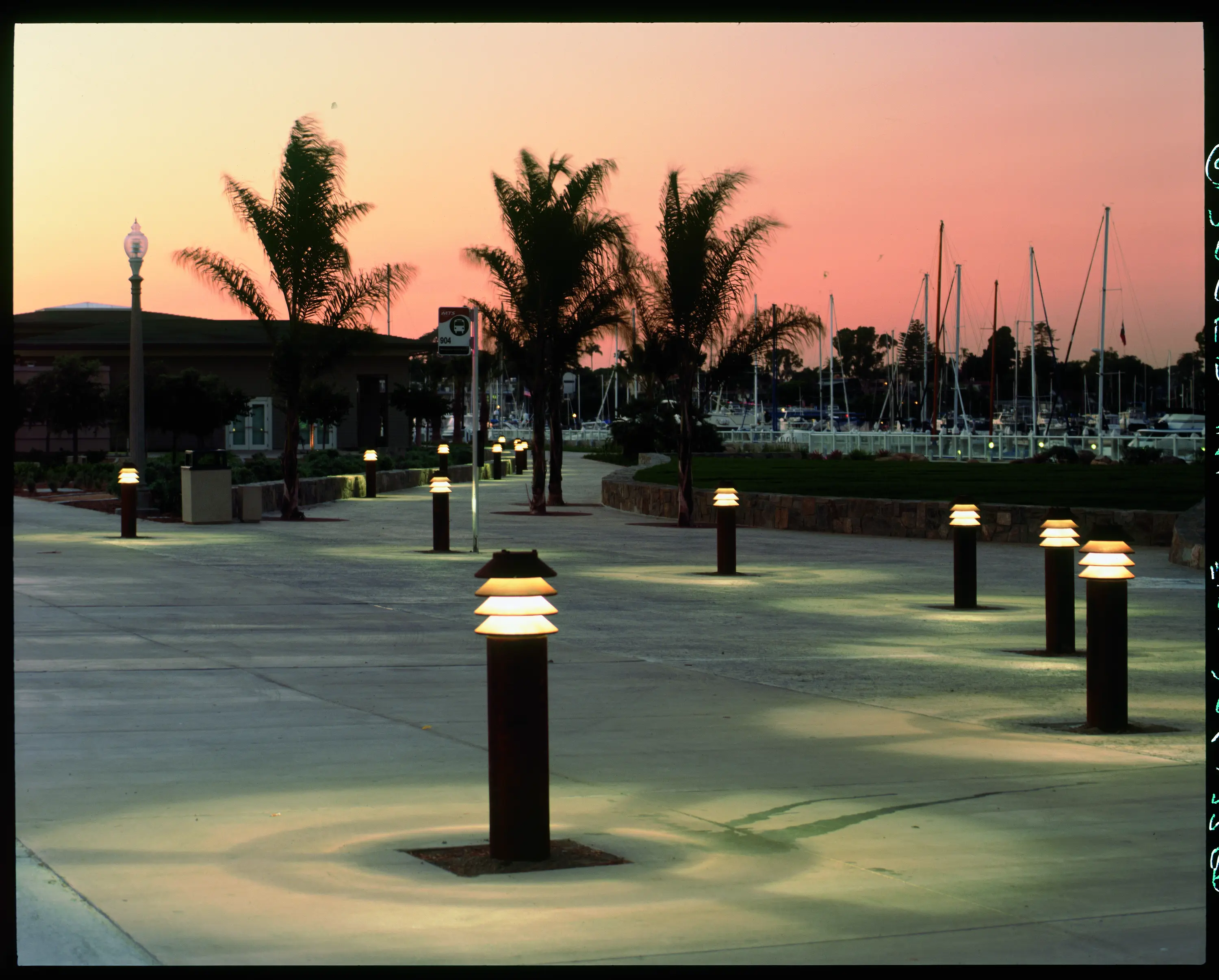

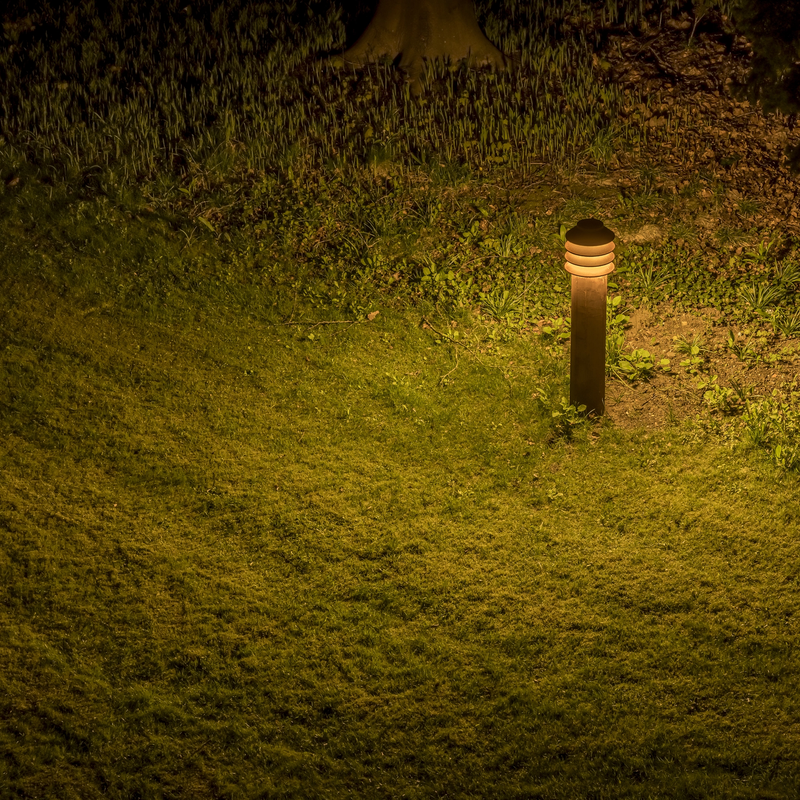

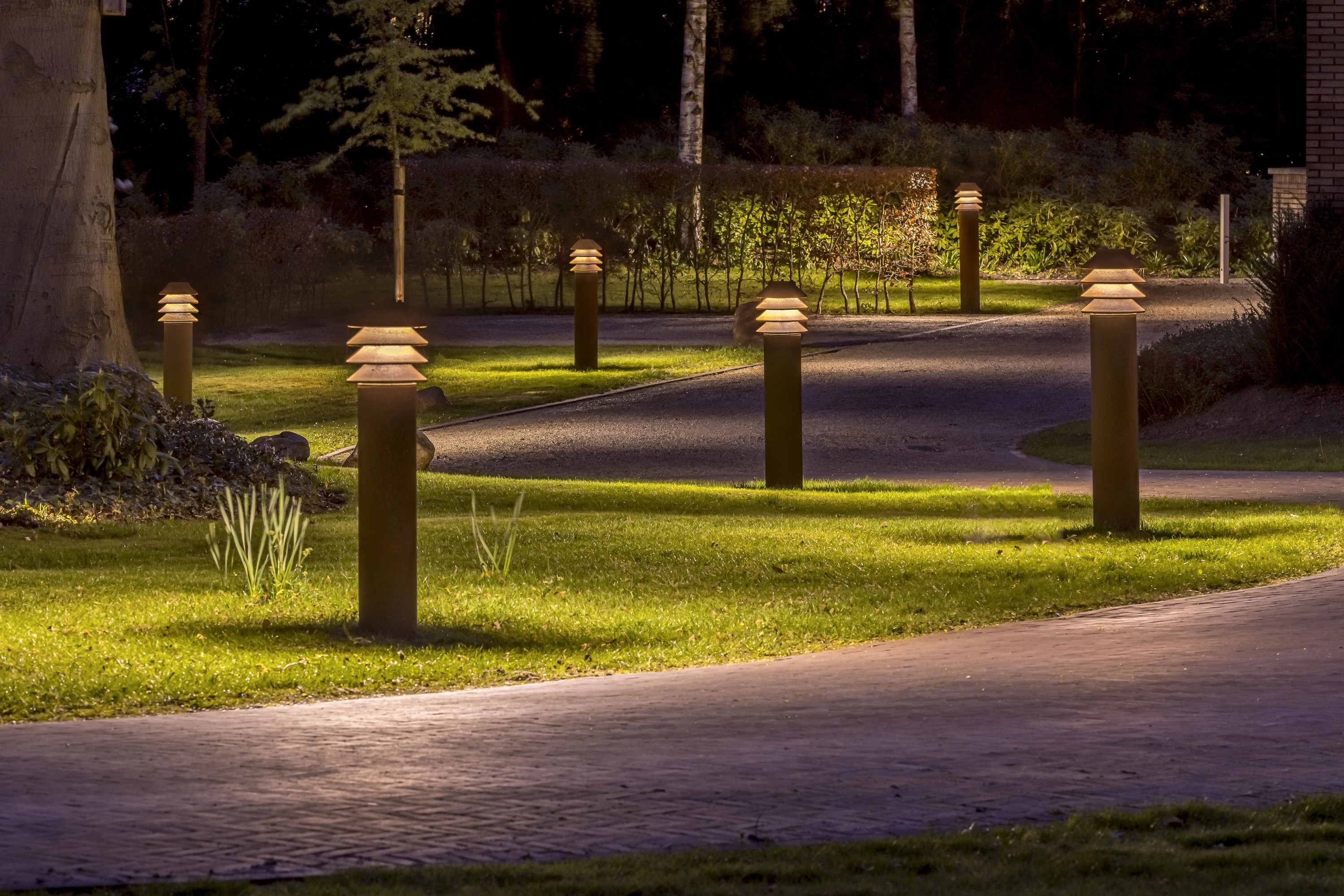

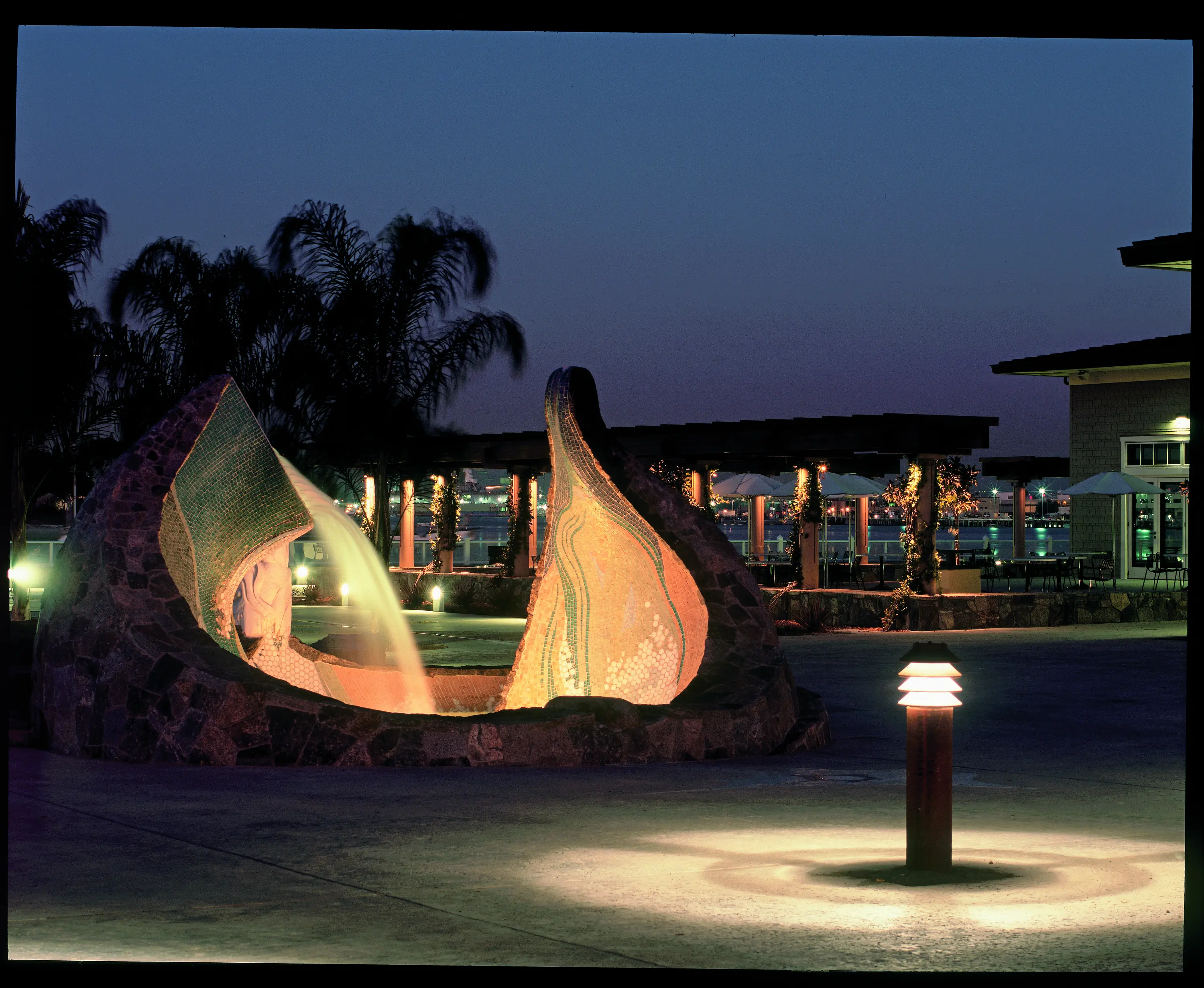

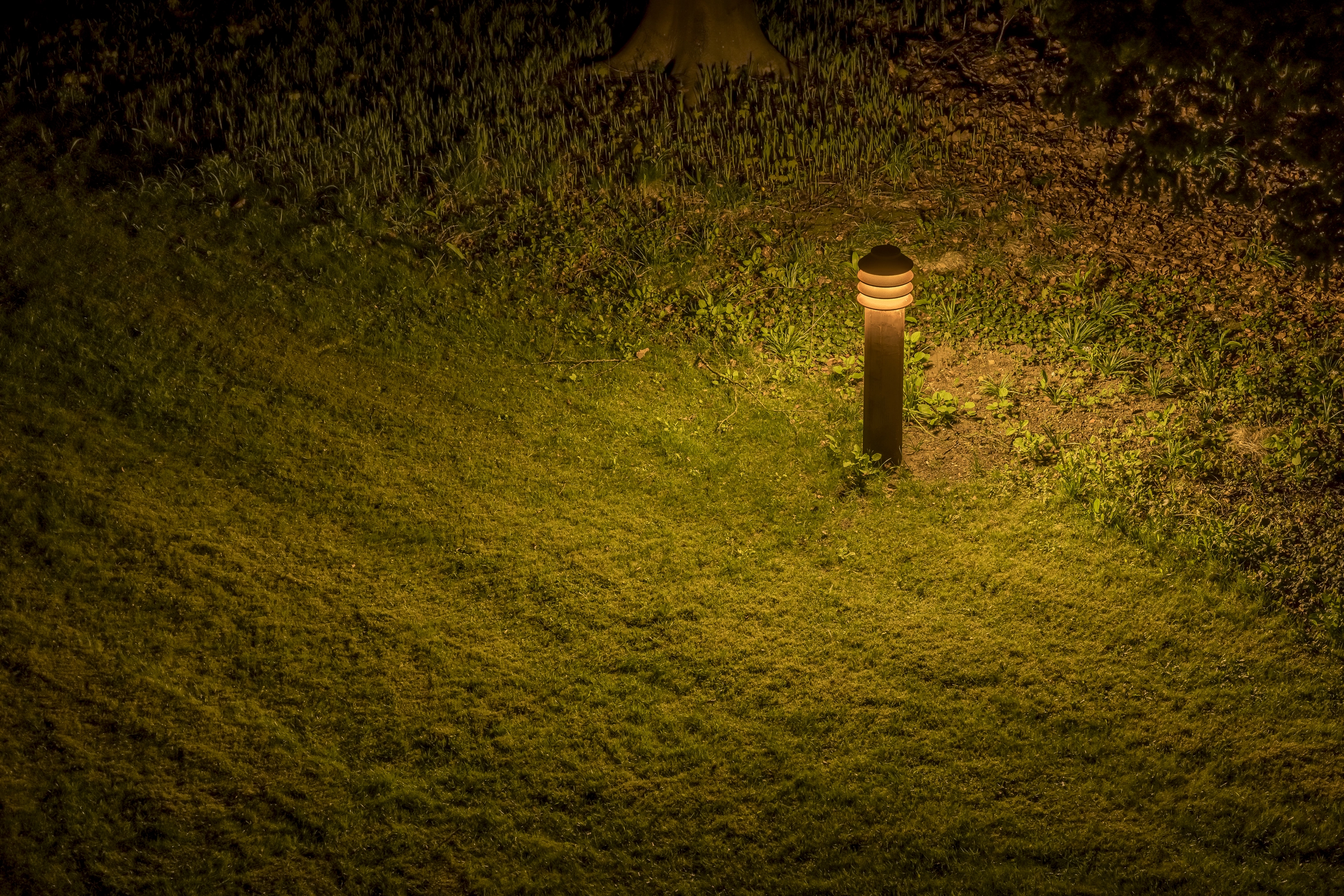

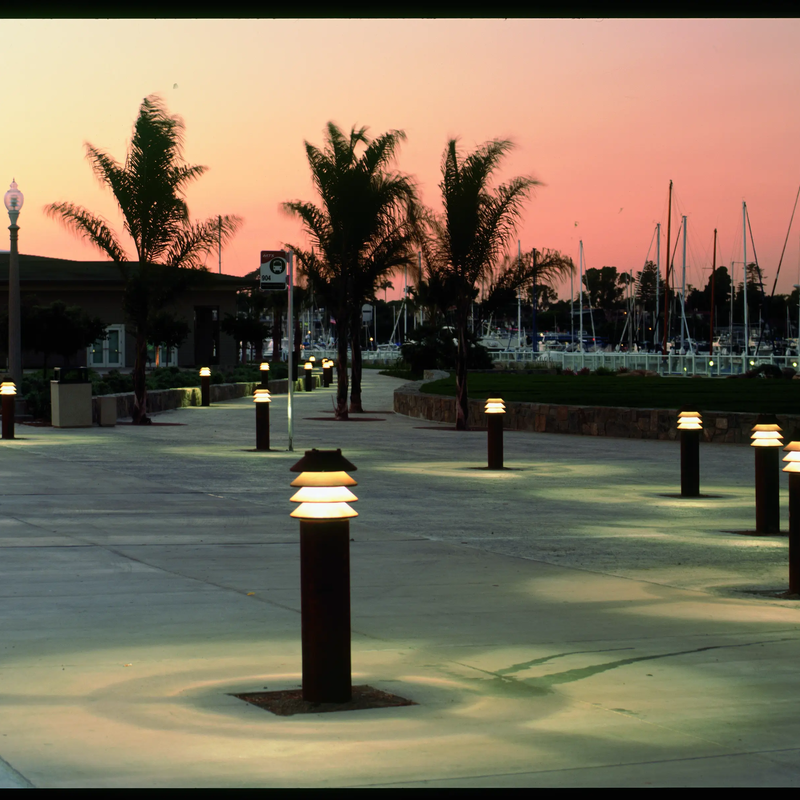

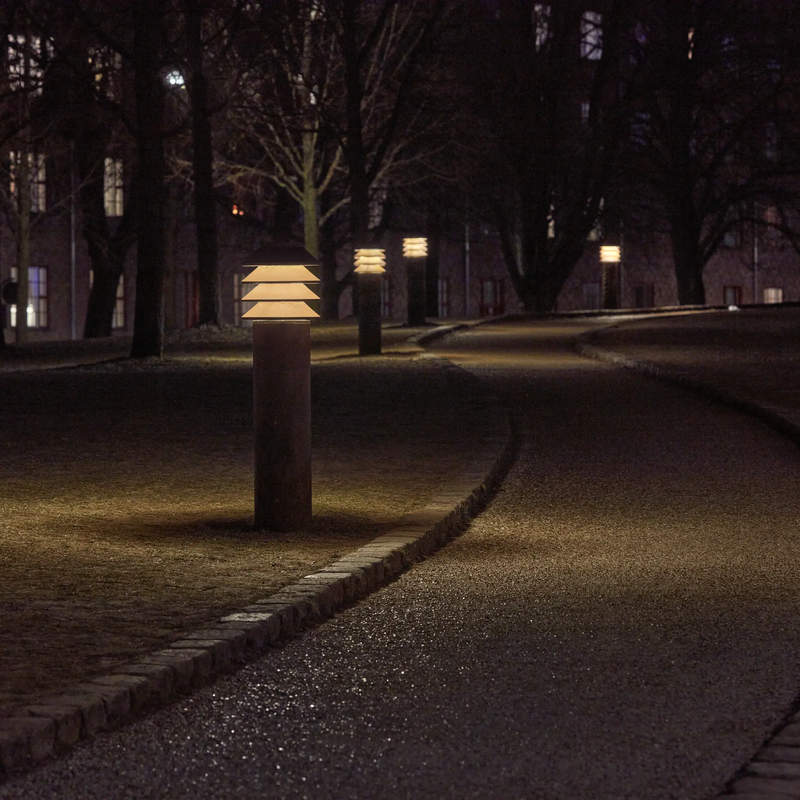

The fixture emits light directed downwards. The shades have a white painted undersurface to achieve optimal light reflection and produce a characteristic symmetric light pattern around the fixture.
Light sourceLight source LED 3000KLumen: 800
CompliancecULus, Wet location.
Other information
Electrical: System Wattage: 29W LED Wattage: 27W Delivered lumens: 412 lm Efficacy: 14.2 lm/W Certifications: cULus, Wet Location Protection class IP44 IK class 10 BUG Rating: B0-U2-G1 Controllability: 0-10V Dimming Min.-Max. Ambient Temp: -30°C to +40°C Color Rendering: Ra≥80 Please contact Louis Poulsen for 2700K, LED Replacement Kit and more info about supported Light Management Systems. Anchor bolt part number is 5747937635, description is AB KIT 1/2-13 L15 /3IN SET OF 4 BC10.0
Materials
Luminaire head: Die cast iron. Post: Corten steel. Base plate: Corten steel.
Finish
Corten steel, raw.
Size (in.): 280 (width) x 1130 (Height) x 280 (Length)
Weight:85.6 lbs
This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused. Louis Poulsen is part of ELRETUR which ensures that electronic waste (WEEE) across of Europa is reused. This product must be treated as electronic waste. The product is packaged in a fabric bag and a cardboard box. The cardboard is made from min. 75% recycled fibremass. Additional cardboard material comes from FSC approved sources.Download environmental product information
Base plate dimension: 12” diameter. Base plate: Mounted to a concrete base with 4 anchor bolts on a bolt circle of 10" diameter. Installation: Refer to mounting instruction download section for installation details.Mounting instructions
BYSTED, TOP COVER SCREWS
Item no:5747811081002
$ 30
BYSTED AQUA STOPPER
Item no:5747811104002
$ 120
AB KIT 1/2-13 L15 /3IN SET OF 4 BC10.0
Item no:5747937635002
$ 175
