PH Louvre
Design by
Poul HenningsenColorWhite
$ 12,104
$ 14,240
Estimated shipping time: 3-6 days
Lightsource: Built in LED
Free shipping
Free returns

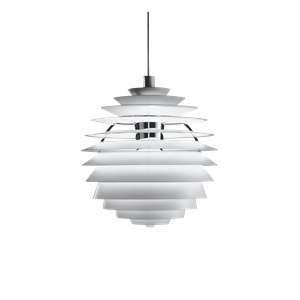

About the PH Louvre
Poul Henningsen designed the three-shade system during 1925/1926. The first lights using the system were designed for an exhibition in Paris. His work with Louis Poulsen continued until his death in 1967. Throughout his life, PH sought to create glare-free lighting; aiming to direct light where it was most needed, and creating soft shadows while using incandescent bulbs as a light source. PH Louvre was designed for the Adventist Church in Skodsborg, Denmark, in 1957. The globe-shaped fixture is made up of 13 shades mounted on four supports. It is a simplification of the Spiral designed by Henningsen in 1942.
The fixture provides 100% glare-free light. The geometrical, spherical design is based on the principle of illuminating all surfaces at the same angle. This ensures uniform light around the fixture, illuminating both walls and ceiling. Matte painted undersurfaces and glossy top surfaces result in an attractive reflection of the diffused light, creating uniform light distribution around the fixture.
- Light sourceLight source LED 2700K (ra90)Lumen: 2596CompliancecULus, Damp location.Other informationElectrical: System Wattage: 97W LED Wattage: 89 W Delivered lumens: 2,479 - 2,596 Efficacy: 25.6 lm/W - 26.8 lm/W Certifications: cULus, Dry Location Protection class IP20 Controllability: 0-10V Dimming Color Rendering: Ra≥90
- MaterialsShades: Spun aluminium.
Frame: High lustre chrome plated, extruded brass.

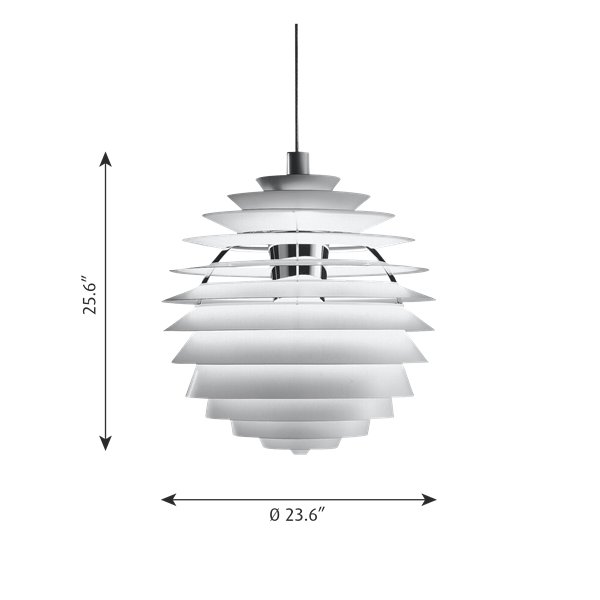

Housing: High lustre chrome plated, spun aluminium.FinishWhite, wet painted. - Size (in.): 23.6 (width) x 25.6 (Height) x 23.6 (Length)Weight:29.8 lbs
- 12'. 3-conductor, 18 AWG white power cord.
1 x stainless steel aircraft cable.
Canopy included.Mounting instructions - PH Louvre LED DIM 0-10V 2700K suspension kit (US)Item no:5741915116$ 4,085PH Louvre LED DIM 0-10V 3000K suspension kit (US)Item no:5741915129$ 4,085
Pendants & ceiling lamps
You might also like
- Variant number
LED 2700K 97W 120-277V/60HZ 5741917910 LED 3000K 97W 120-277V/60HZ 5741917923 - Variant spec sheet [PDF]Installation instructions [PDF]Light distribution diagrams [JPG]Unified Luminaire Data [ULD]
