Waterfront

Waterfront

Design by
Dan Borgen Hasløv
ColourAluminium Colour Texture
£ 2,060
Estimated delivery time: 6-8 weeks
Lightsource: Built in LED
Free shipping
Free returns
Product spec sheetProfessional tools

About the Waterfront

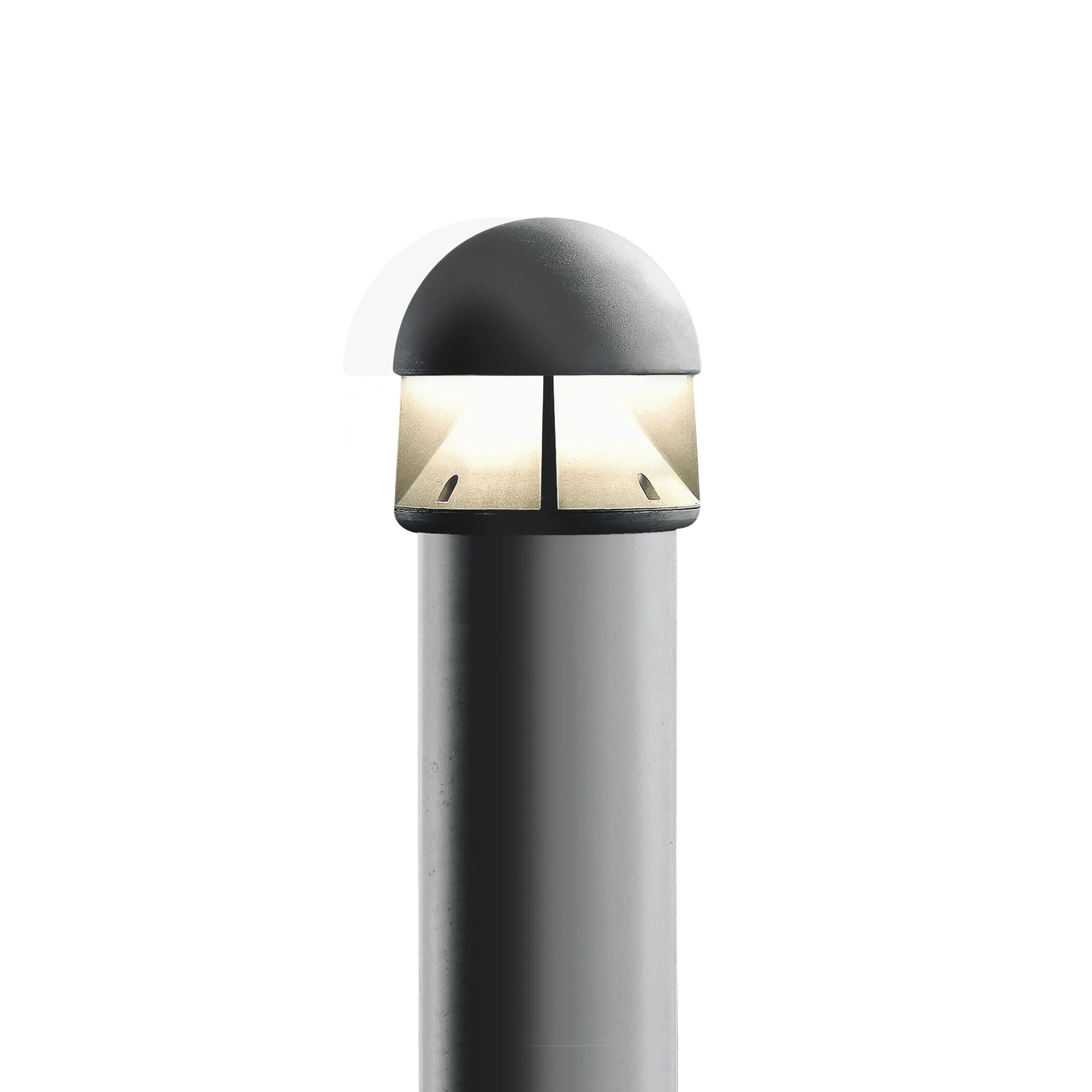

Waterfront was designed by Dan B. Hasløv in 1983 for Kaløvig harbour in Denmark. As a yachtsman, Dan B. Hasløv had often noted that there was far too little light along harbour fronts. He therefore developed a fixture head which could be mounted on top of the wooden poles commonly found in harbour environments. The fixture emits glare-free light directed downwards, making it easy for sailors to navigate. The fixture is also made from sturdy materials which can handle the harsh environment. Waterfront was later modified into a bollard.The LED version was launched in 2009.

  • The fixture emits 100% glare-free downward light. The light distribution is symmetric and soft. The four supports create an comfortable symmetric light pattern at ground level.

  • Light sourceLight source LED 3000KLumen: 663
    ClassIngress protection IP65. Electric shock protection I w. ground, II w/o ground. IK10.
    Other informationThe intermediate ring solution is used when the fixture is to be mounted without post directly on a flat surface. The post and intermediate ring are delivered in the same colour as the fixture head. Detailed information about installation and looping possibilities can be found on our Internet page. The fixture is IP65. The bollard pole door is IP44. Post for base plate installation is supplied without anchor bolts. Anchor bolts to be soured locally. The innovation of the LED technology is constant. The specifications mentioned are based on present technology. Please contact Louis Poulsen for 2700K.
  • MaterialsEnclosure: Injection moulded clear polycarbonate. Housing: Die cast aluminium. Top: Die cast aluminium. Post: Extruded aluminium. Base plate: Die cast aluminium.
    FinishAluminium coloured with textured surface or graphite with textured surface, powder coated.
  • Waterfront dimensions
    Size (mm): 260 (width) x 865 (Height) x 260 (Length)
    Weight:33.6 kg
  • In-ground struts: Yes. Terminal block positioning: In installation box (not included). Looping: Depends on type of installation box. Driver positioning: In fixture head. Max. installation cable: Depending on installation box. Post f/in-ground installation: Height excluding fixture head: 1195mm, including 600mm below ground. Bollard with base plate for surface mounting: Height excluding fixture head: 595mm. Post diameter 210mm. Installation box must be supplied seperately.Mounting instructions
  • We supply spare parts, replacement parts, and accessories for a large number of our products. Please contact us at support@louispoulsen.co.uk or +44 (0)20 8397 4400.

  • Variant number
    Aluminium Colour TextureLED 3000K 17W663IPOST W/BASE PLATEDac: dali + clo5747813474
    Aluminium Colour TextureLED 3000K 17W663IPOST F/IN-GROUND INSTALLATIONDac: dali + clo5747813487
    Aluminium Colour TextureLED 3000K 17W663IIPOST W/BASE PLATEDpc: nightdim + clo5747813490
    Aluminium Colour TextureLED 3000K 17W663IIPOST F/IN-GROUND INSTALLATIONDpc: nightdim + clo5747813500
    Graphite Grey TextureLED 3000K 17W564IPOST W/BASE PLATEDac: dali + clo5747813513
    Graphite Grey TextureLED 3000K 17W564IPOST F/IN-GROUND INSTALLATIONDac: dali + clo5747813526
    Graphite Grey TextureLED 3000K 17W564IIPOST W/BASE PLATEDpc: nightdim + clo5747813539
    Graphite Grey TextureLED 3000K 17W564IIPOST F/IN-GROUND INSTALLATIONDpc: nightdim + clo5747813542
