Pole Taper Round
ColorWhite Smoothe Glossy
$ 1,840
Estimated delivery time: >8 weeks. Contact Customer Service
Free shipping
Free returns
About the Pole Taper Round

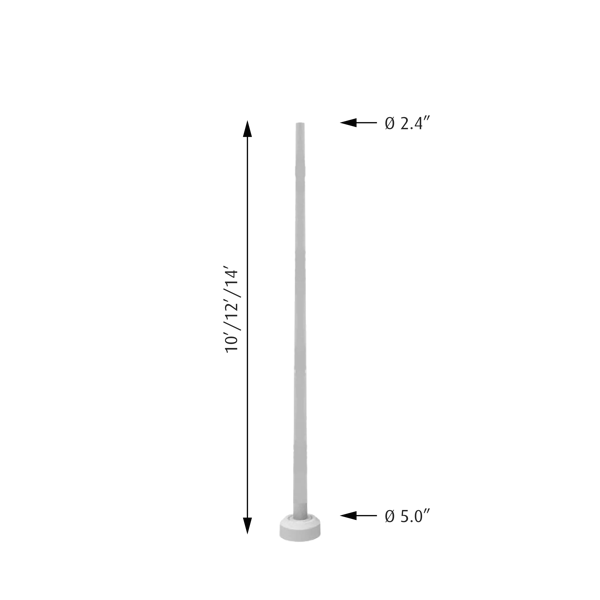

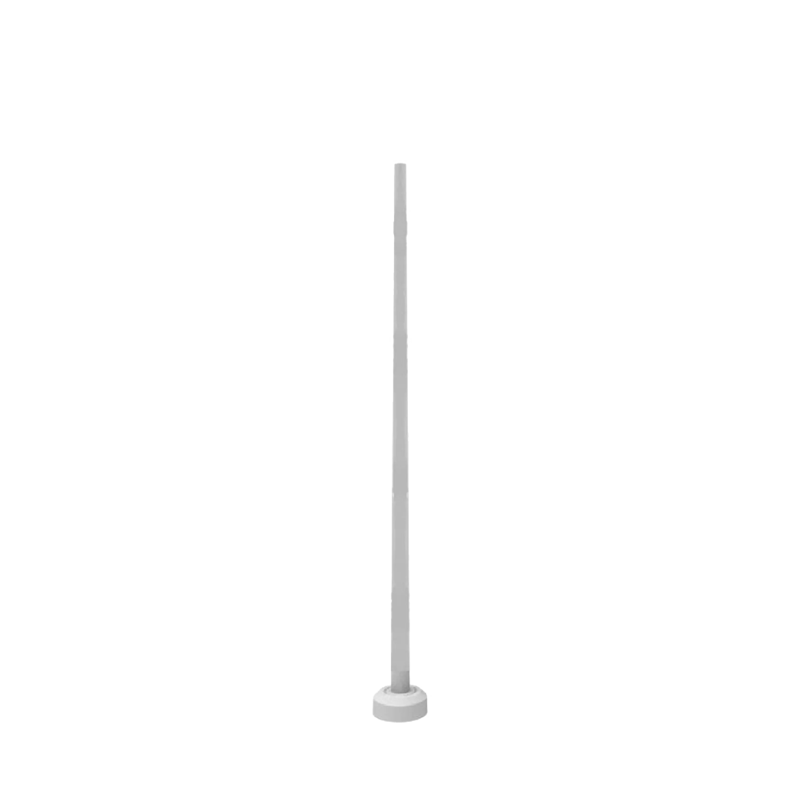

A round, tapered, 6063-T6 alloy aluminum pole with a fixed base. Pole top diameter Ø3.0” or Ø2.38” x 4” long straight section for direct slip-overluminaire mounting. Pole bottom diameter is Ø5.0”.
- Other information
Optional GFCI (Ground Fault Circuit Interrupting) outlets are available, at 30” A.F.G., on the same side as the handhole. Outlets are NEMA 3R enclosure, 120V AC, 15 Amp, NEMA 5-15 style. GFCI covers lockable lid. Covers have matching powder coat finish as the pole and are intended for portable tools or other portable equipment connected to the outlet when attended.
Lighting poles are designed and manufactured to comply with AASHTO 2013 (LTS-6) ).
- Materials
Extruded aluminum pole shaft in 6063-T6 alloy. A356 aluminum alloyanchor base. Anchor bolts conform to ASTM F1554 Grade 55 with L bend, fullygalvanized. Anchor bolts provided with (2) hex nuts and (2) flat washers. Flush mount, covered handhole with grounding provisions provided. Basecover of 2 cast aluminum halves made of A360 alloy, with appoximately 12,5 inch diameter x 5.25 inch height.
FinishStandard finishes are a matte textured or glossy coat with a minimum 3 mil thickness.
Size (in.): 8.8 (width) x 120 (Height) x 8.8 (Length)Weight:0.0 lbs- Base plate: Mounted with 4 anchor bolts. Hand hole 3” wide x5” tall at 18” A.F.G. Ground connection inside hand hole.Mounting instructions
- BASE COVER 5.0 POLE [NATURAL ALUM. TEXTURED (AL162)] USItem no:5747937538$ 330BASE COVER 5.0 POLE [BLACK FINE METALLIC (BL723)] USItem no:5747937541$ 330BASE COVER 5.0 POLE [GRAPHITE TEXTURED (GP163)] USItem no:5747937554$ 330
- Variant number
10 FT White Smoothe Glossy - 5747936474 10 FT White Smoothe Glossy Gfci rec2 5747936487 12 FT White Smoothe Glossy - 5747936490 12 FT White Smoothe Glossy Gfci rec2 5747936500 14 FT White Smoothe Glossy - 5747936513 14 FT White Smoothe Glossy Gfci rec2 5747936526 16 FT White Smoothe Glossy - 5747936539 16 FT White Smoothe Glossy Gfci rec2 5747936542 18' White Smoothe Glossy - 5747936555 18' White Smoothe Glossy Gfci rec2 5747936568 10 FT White Smoothe Glossy - 5747936571 10 FT White Smoothe Glossy Gfci rec2 5747936584 12 FT White Smoothe Glossy - 5747936597 12 FT White Smoothe Glossy Gfci rec2 5747936607 14 FT White Smoothe Glossy - 5747936610 14 FT White Smoothe Glossy Gfci rec2 5747936623 16 FT White Smoothe Glossy - 5747936636 16 FT White Smoothe Glossy Gfci rec2 5747936649 18' White Smoothe Glossy - 5747936652 18' White Smoothe Glossy Gfci rec2 5747936665 10 FT Natural Aluminium Textured - 5747936678 10 FT Natural Aluminium Textured Gfci rec2 5747936681 12 FT Natural Aluminium Textured - 5747936694 12 FT Natural Aluminium Textured Gfci rec2 5747936704 14 FT Natural Aluminium Textured - 5747936717 14 FT Natural Aluminium Textured Gfci rec2 5747936720 16 FT Natural Aluminium Textured - 5747936733 16 FT Natural Aluminium Textured Gfci rec2 5747936746 18' Natural Aluminium Textured - 5747936759 18' Natural Aluminium Textured Gfci rec2 5747936762 10 FT Natural Aluminium Textured - 5747936775 10 FT Natural Aluminium Textured Gfci rec2 5747936788 12 FT Natural Aluminium Textured - 5747936791 12 FT Natural Aluminium Textured Gfci rec2 5747936801 14 FT Natural Aluminium Textured - 5747936814 14 FT Natural Aluminium Textured Gfci rec2 5747936827 16 FT Natural Aluminium Textured - 5747936830 16 FT Natural Aluminium Textured Gfci rec2 5747936843 18' Natural Aluminium Textured - 5747936856 18' Natural Aluminium Textured Gfci rec2 5747936869 10 FT Graphite Textured - 5747936872 10 FT Graphite Textured Gfci rec2 5747936885 12 FT Graphite Textured - 5747936898 12 FT Graphite Textured Gfci rec2 5747936908 14 FT Graphite Textured - 5747936911 14 FT Graphite Textured Gfci rec2 5747936924 16 FT Graphite Textured - 5747936937 16 FT Graphite Textured Gfci rec2 5747936940 18' Graphite Textured - 5747936953 18' Graphite Textured Gfci rec2 5747936966 10 FT Graphite Textured - 5747936979 10 FT Graphite Textured Gfci rec2 5747936982 12 FT Graphite Textured - 5747936995 12 FT Graphite Textured Gfci rec2 5747937004 14 FT Graphite Textured - 5747937017 14 FT Graphite Textured Gfci rec2 5747937020 16 FT Graphite Textured - 5747937033 16 FT Graphite Textured Gfci rec2 5747937046 18' Graphite Textured - 5747937059 18' Graphite Textured Gfci rec2 5747937062 10 FT White Texture - 5747937075 10 FT White Texture Gfci rec2 5747937088 12 FT White Texture - 5747937091 12 FT White Texture Gfci rec2 5747937101 14 FT White Texture - 5747937114 14 FT White Texture Gfci rec2 5747937127 16 FT White Texture - 5747937130 16 FT White Texture Gfci rec2 5747937143 18' White Texture - 5747937156 18' White Texture Gfci rec2 5747937169 10 FT White Texture - 5747937172 10 FT White Texture Gfci rec2 5747937185 12 FT White Texture - 5747937198 12 FT White Texture Gfci rec2 5747937208 14 FT White Texture - 5747937211 14 FT White Texture Gfci rec2 5747937224 16 FT White Texture - 5747937237 16 FT White Texture Gfci rec2 5747937240 18' White Texture - 5747937253 18' White Texture Gfci rec2 5747937266 10 FT Grey Smoothe Glossy - 5747937279 10 FT Grey Smoothe Glossy Gfci rec2 5747937282 12 FT Grey Smoothe Glossy - 5747937295 12 FT Grey Smoothe Glossy Gfci rec2 5747937305 14 FT Grey Smoothe Glossy - 5747937318 14 FT Grey Smoothe Glossy Gfci rec2 5747937321 16 FT Grey Smoothe Glossy - 5747937334 16 FT Grey Smoothe Glossy Gfci rec2 5747937347 18' Grey Smoothe Glossy - 5747937350 18' Grey Smoothe Glossy Gfci rec2 5747937363 10 FT Grey Smoothe Glossy - 5747937376 10 FT Grey Smoothe Glossy Gfci rec2 5747937389 12 FT Grey Smoothe Glossy - 5747937392 12 FT Grey Smoothe Glossy Gfci rec2 5747937402 14 FT Grey Smoothe Glossy - 5747937415 14 FT Grey Smoothe Glossy Gfci rec2 5747937428 16 FT Grey Smoothe Glossy - 5747937431 16 FT Grey Smoothe Glossy Gfci rec2 5747937444 18' Grey Smoothe Glossy - 5747937457 18' Grey Smoothe Glossy Gfci rec2 5747937460 - Variant spec sheet [PDF]
