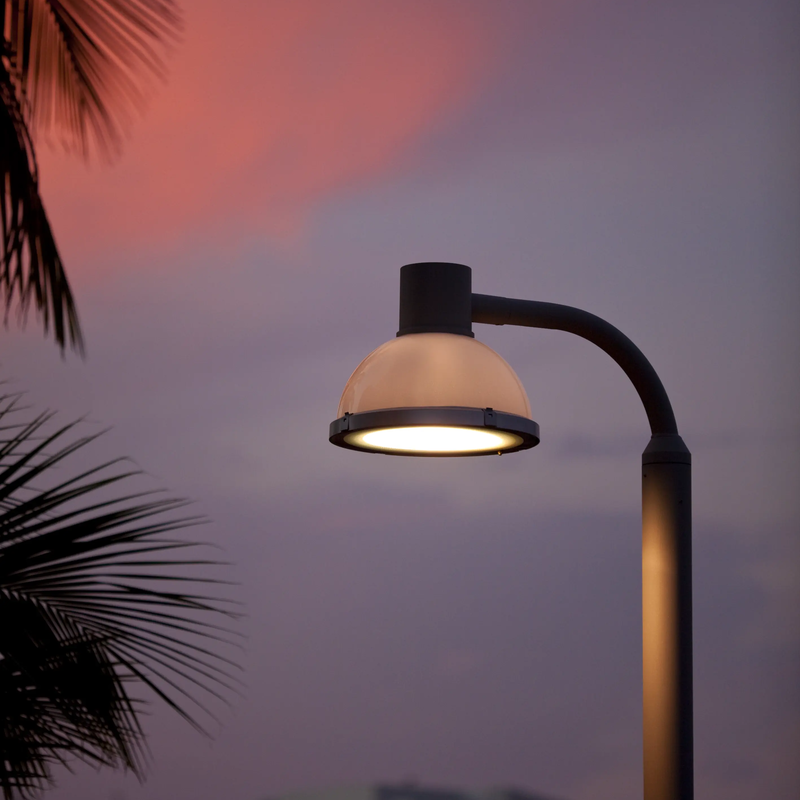

LP Icon
Design by
Mads OdgårdColorNatural Paint Aluminum
$ 3,030
Estimated delivery time: >8 weeks. Contact Customer Service
Lightsource: Built in LED
Free shipping
Free returns
About the LP Icon

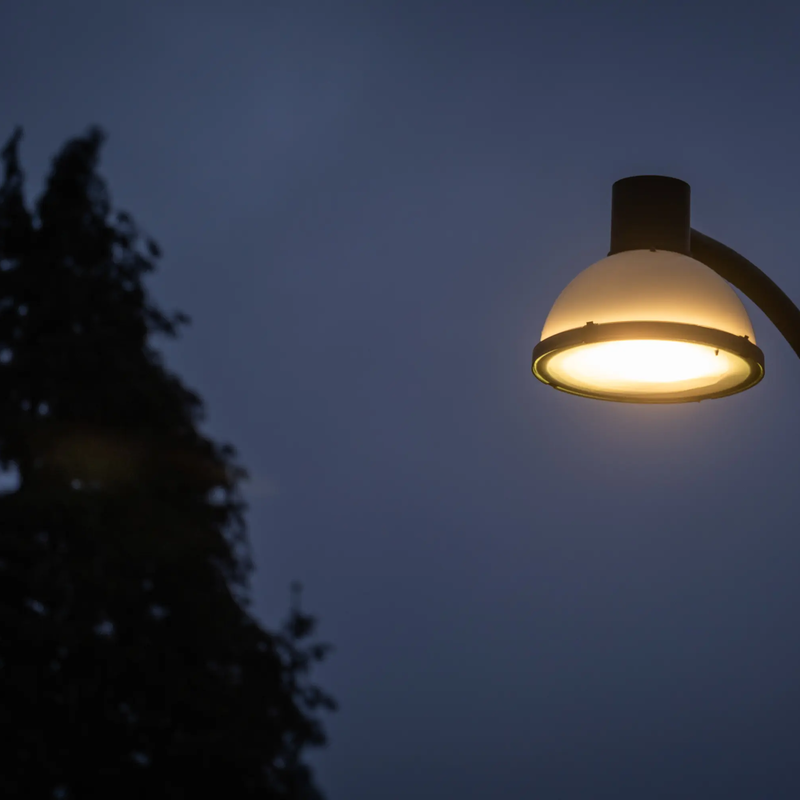

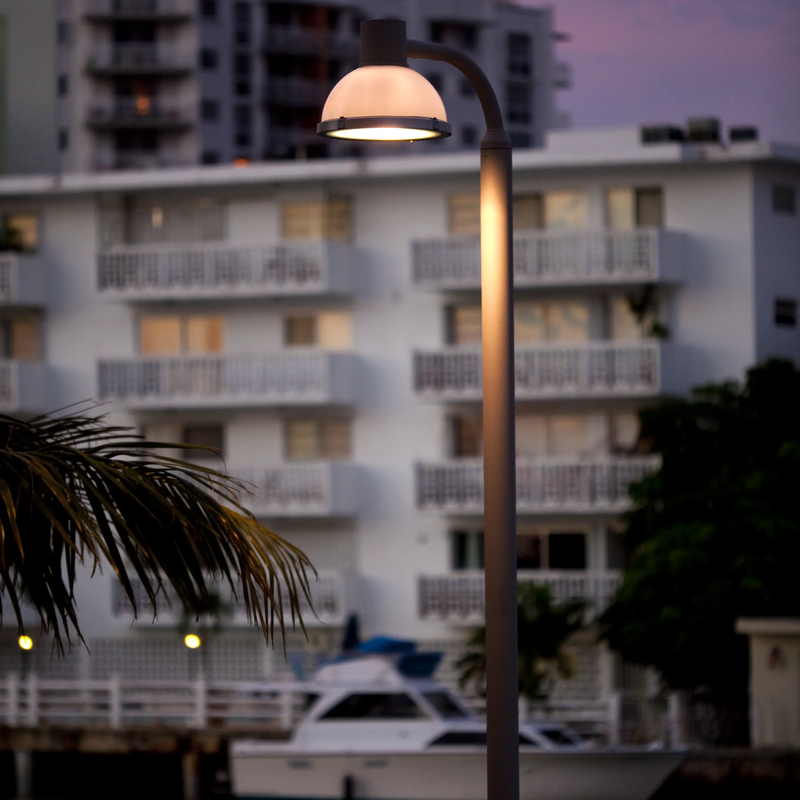

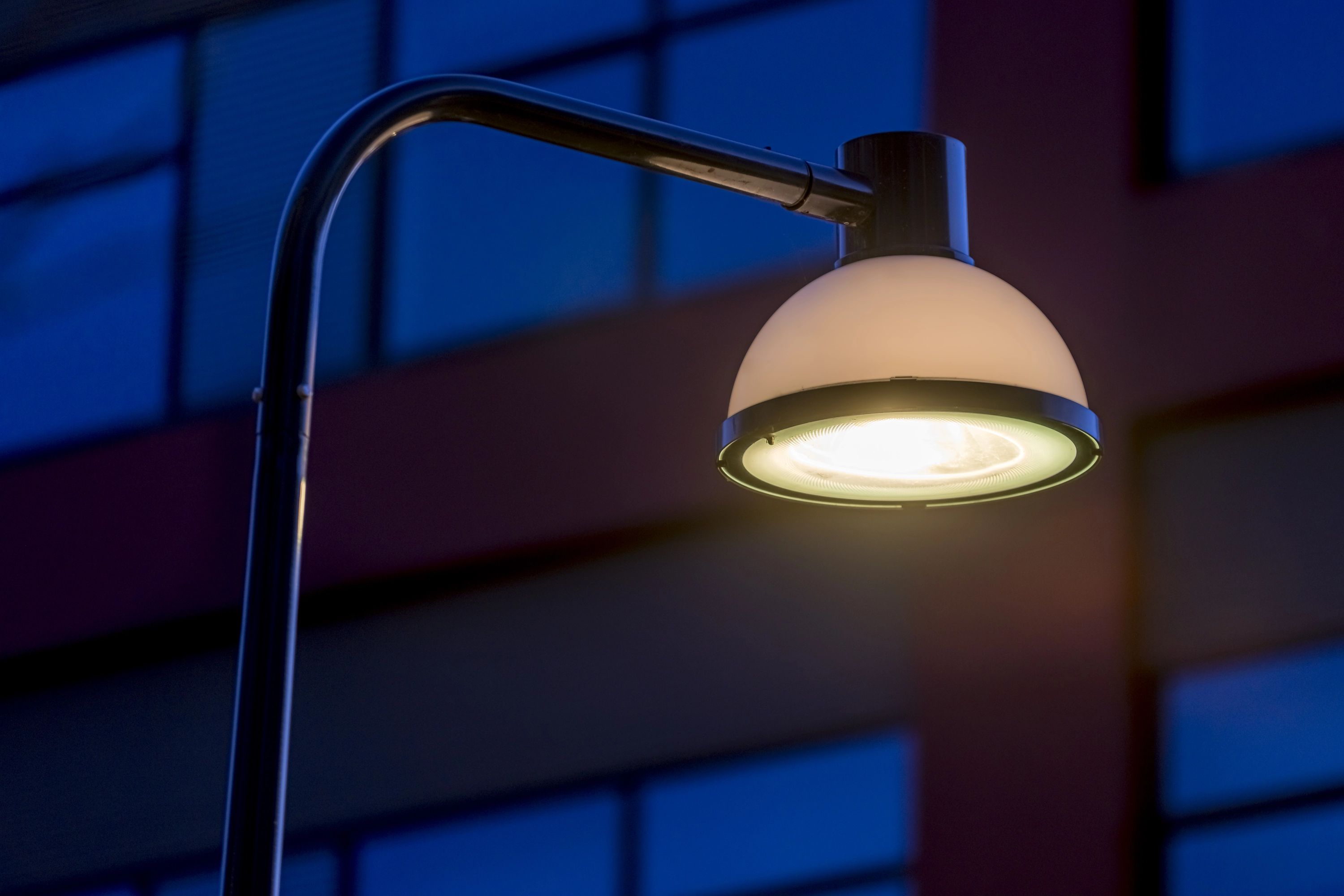

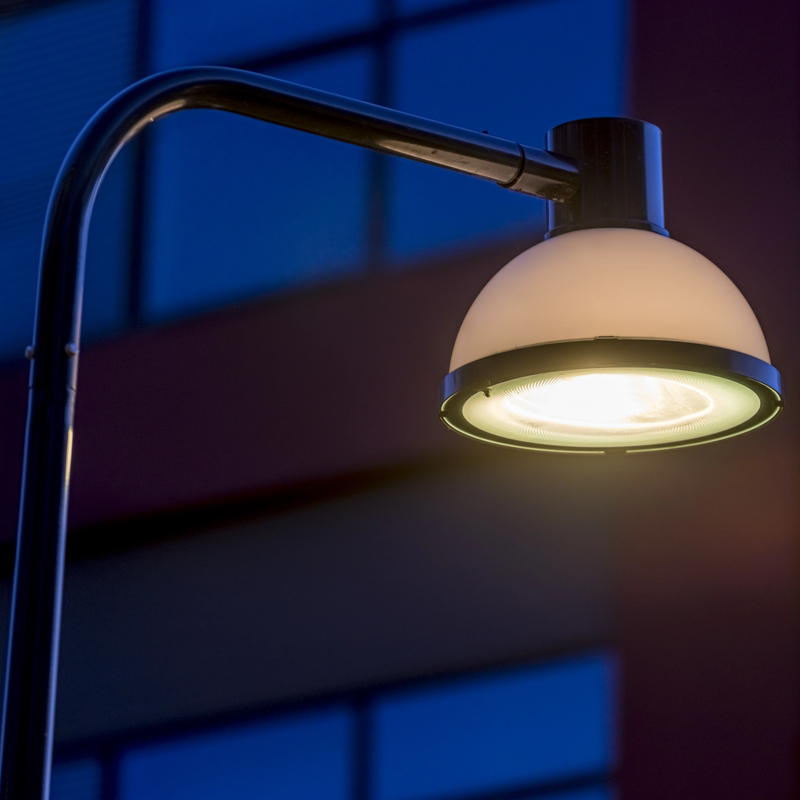

The fixture mainly provides direct downward illumination. The shade is lit up from within and creates a softly diffused glow. Depending on the lenses chosen, the downwardly directed light can be distributed symmetrically or asymmetrically. Optical lenses in front of the LEDs ensure precise light distribution. The reflector surrounding the LED boards and lenses creates a transition from high luminance to lower luminance, thereby reducing uncomfortable contrast.
- Light sourceLight source LED 3000K HILumen: 8156CompliancecULus. Wet location.Other informationElectrical: System Wattage: 76 W LED Wattage: 73 W Delivered lumens: 7,029 lm - 7,449 lm Efficacy: 92.4 - 98.0 lm/W Certifications: cULus, Wet Location Protection class IP65 IK class 06 BUG Rating: B2-U2-G0; B1-U2-G1 Controllability: 0-10V Dimming Min.-Max. Ambient Temp: -20°C to +70°C Color Rendering: Ra≥80 Please contact Louis Poulsen for 2700K.
- MaterialsEnclosure: High-pressure molded white opal acrylic. Reflector: Metalized plastic. Bottom enclosure: Silk screened heat tempered glass. Housing: Die cast aluminum. A vent for pressure equalization is mounted in the glass.FinishNatural painted aluminum, powder coated.
Size (in.): 476 (width) x 422 (Height) x 476 (Length)Weight:30.4 lbs- This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused. Louis Poulsen is part of ELRETUR which ensures that electronic waste (WEEE) across of Europa is reused. This product must be treated as electronic waste. The product is packaged in a fabric bag and a cardboard box. The cardboard is made from min. 75% recycled fibremass. Additional cardboard material comes from FSC approved sources.Download environmental product information
- Post top: Mounts onto horizontal tenon 1.9IN diameter by 3.8IN long. Pair only with LPI-MIN poles.Mounting instructions
- LEDIL BACKLIGHT SHADE KIT ICON LIItem no:5747407068002€ 35LEDIL BACKLIGHT SHADE KIT ICON HIItem no:5747407071002€ 45ICON MINI, STEEL POLE 5,6M TOP Ø60, GALVItem no:5747815061002€ 1,380
- Variant number
SIDE ENTRY LED 3000K HI 8156 DIM 0-10V 5747932850 SIDE ENTRY LED 3000K HI 8247 DIM 0-10V 5747932863 SIDE ENTRY LED 3000K HI 8156 SR NEMA CLO 5747932876 SIDE ENTRY LED 4000K HI 8781 DIM 0-10V 5747932889 SIDE ENTRY LED 4000K HI 8888 DIM 0-10V 5747932892 SIDE ENTRY LED 4000K HI 8781 SR NEMA CLO 5747932902 WIRE TOP-MOUNTED LED 3000K HI 8156 DIM 0-10V 5747932915 WIRE TOP-MOUNTED LED 3000K HI 8247 DIM 0-10V 5747932928 WIRE TOP-MOUNTED LED 3000K HI 8156 SR NEMA CLO 5747932931 WIRE TOP-MOUNTED LED 4000K HI 8781 DIM 0-10V 5747932944 WIRE TOP-MOUNTED LED 4000K HI 8888 DIM 0-10V 5747932957 WIRE TOP-MOUNTED LED 4000K HI 8781 SR NEMA CLO 5747932960 - Mounting instructionsRevitDXFULDLight measurements3D Model
