LP Capsule
Design by
Carsten Fischer/Henning LarsenColorNatural Paint Aluminum
$ 2,200
Estimated delivery time: >8 weeks. Contact Customer Service
Lightsource: Built in LED
Free shipping
Free returns
About the LP Capsule

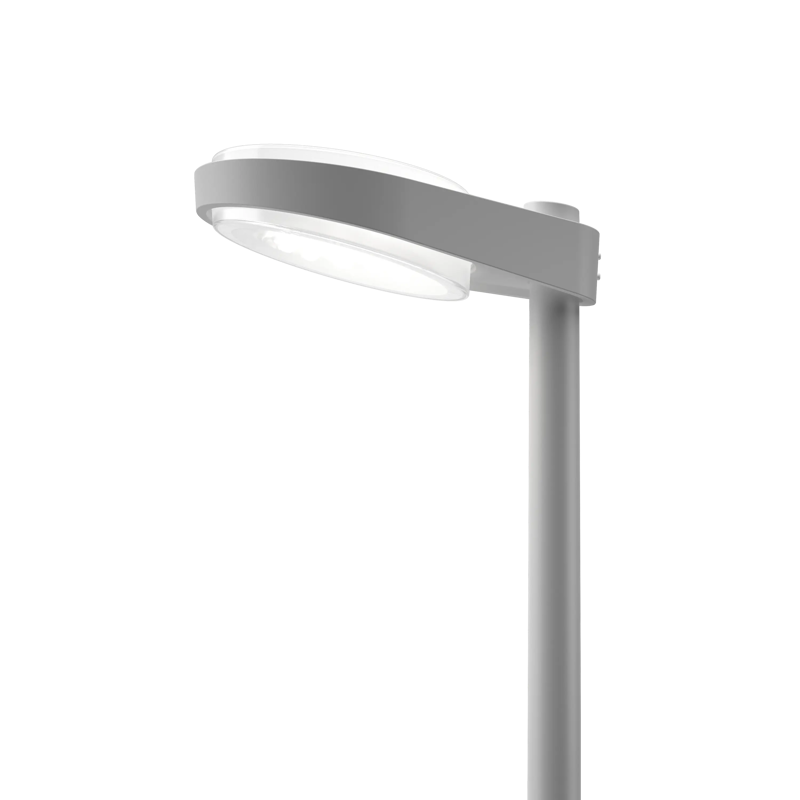

The fixture emits light directed mainly downwards. The fixture has an upward tilt with a compact profile. Variants include 3000K and 4000K options as well as high and low output options.
- Light sourceLight source LED 3000KLumen: 1826CompliancecULus, Wet location.Other informationElectrical: System Wattage: 20W or 38W LED Wattage: 18W or 35W Delivered lumens: 1,826 - 3,661 lm Efficacy: 86.0 lm/W - 103.0 lm/W Certifications: cULus, Wet Location Protection class IP65 IK class 08 BUG Rating: B1-U2-G1 Controllability: 0-10V Dimming Min.-Max. Ambient Temp: -20°C to +50°C Color Rendering: Ra≥80 Wind Load EPA: 1.3 sq ft Urban Comfort comes with prismatic diffuser. Please contact Louis Poulsen for 2700K.
- MaterialsHousing: die-cast aluminum. Top and bottom covers: UV-stabilized acrylic.FinishNatural painted aluminum, powder coated.
- Size (in.): 355 (width) x 191 (Height) x 416 (Length)Weight:18.6 lbs
- This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused. Louis Poulsen is part of ELRETUR which ensures that electronic waste (WEEE) across of Europa is reused. This product must be treated as electronic waste. The product is packaged in a fabric bag and a cardboard box. The cardboard is made from min. 75% recycled fibremass. Additional cardboard material comes from FSC approved sources.Download environmental product information
- Post top: mounts directly on top of either dual round aluminum (DRA-5IN-3IN) or Taper-5IN-2.4INpoles, or onto a round straight aluminum (RSA-4.5IN) pole with provided tenon.Mounting instructions
- TRANS.PIECE POLE Ø114/76 GALVItem no:5747826872002€ 280TRANS.PIECE F/POLE Ø114/60 GALVItem no:5747826885002€ 280LP CAPSULE LED REDUCING PIECE Ø114 USItem no:5747919679002$ 160
- Variant number
LED 3000K 1826 DIM 0-10V 5747919352 LED 3000K 3263 DIM 0-10V HI 5747919378 LED 4000K 1956 DIM 0-10V 5747919394 LED 4000K 3496 DIM 0-10V HI 5747919417 LED 3000K 1913 DIM 0-10V 5747919433 LED 3000K 3417 DIM 0-10V HI 5747919459 LED 4000K 2050 DIM 0-10V 5747919475 LED 4000K 3661 DIM 0-10V HI 5747919491 LED 3000K 2046 DIM 0-10V 5747918065 - Mounting instructionsDWGULDLight measurements
