Flindt Plaza
About the Flindt Plaza

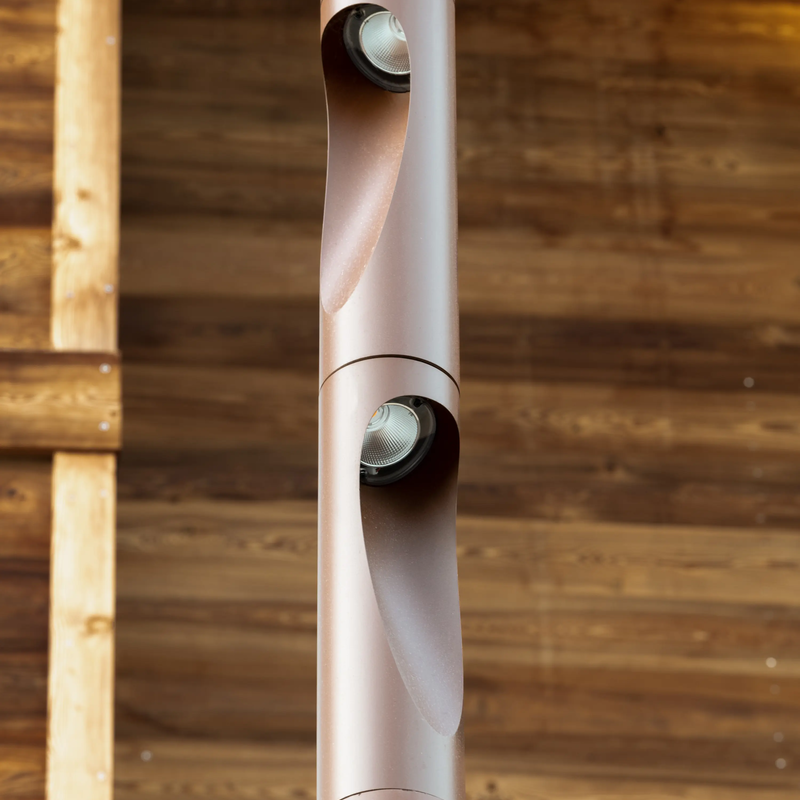

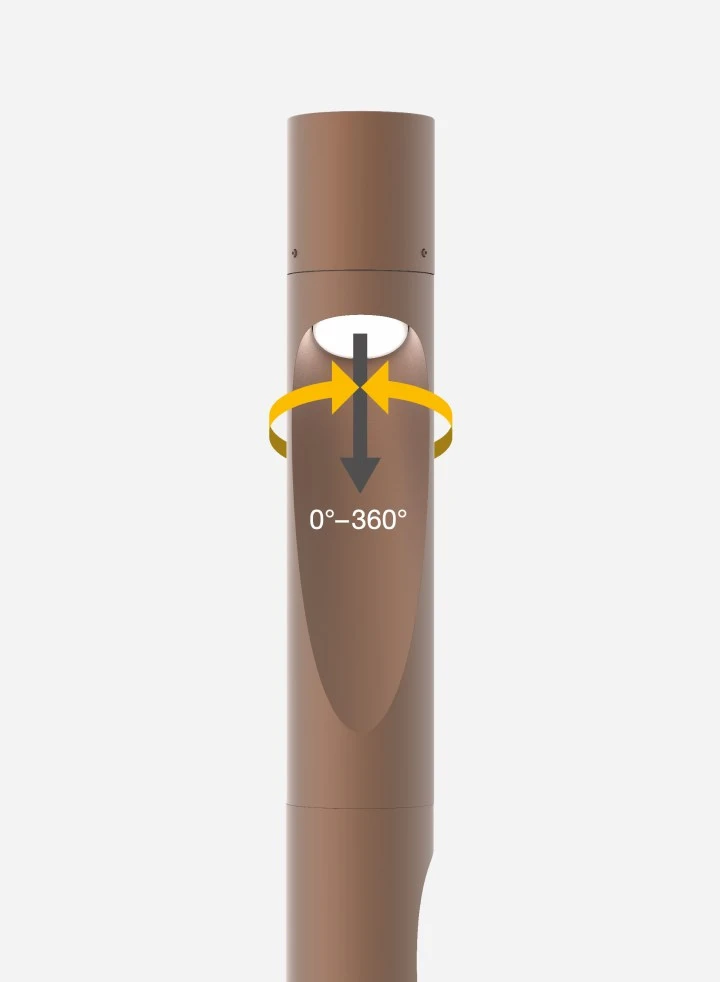

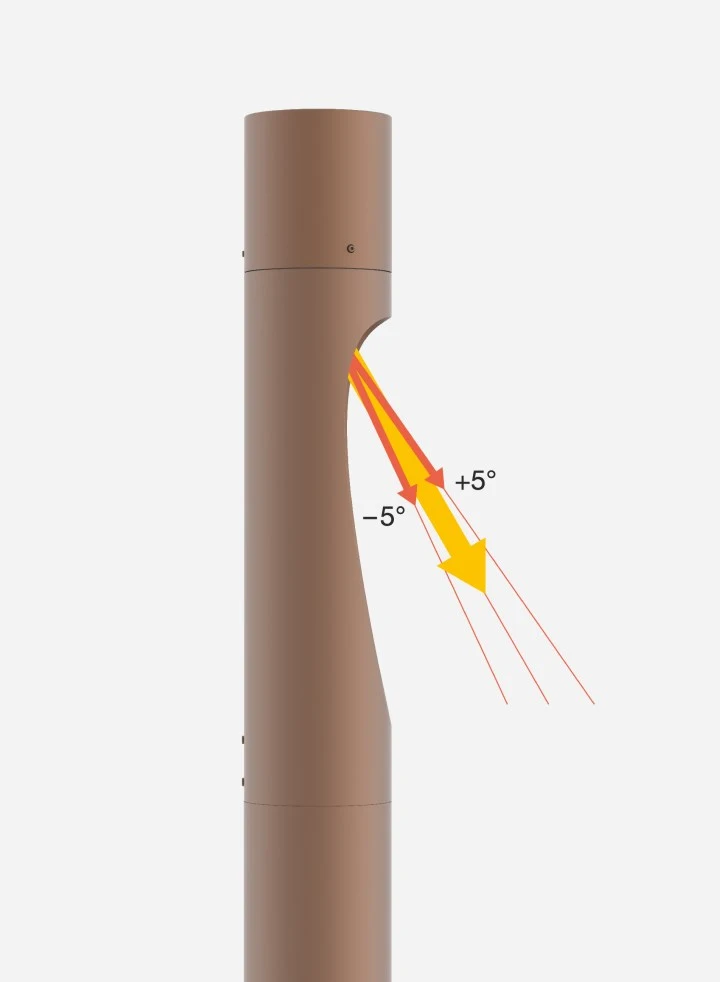

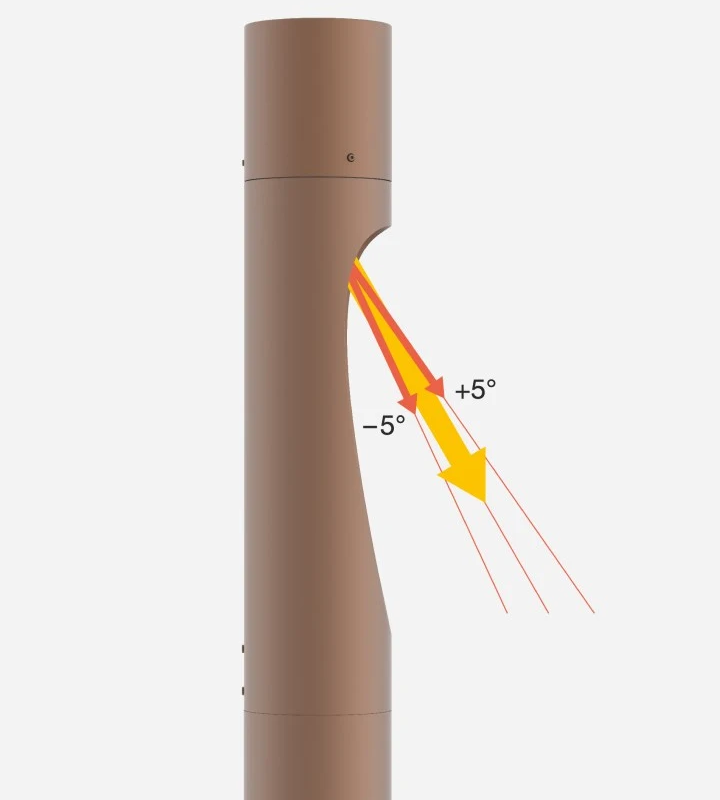

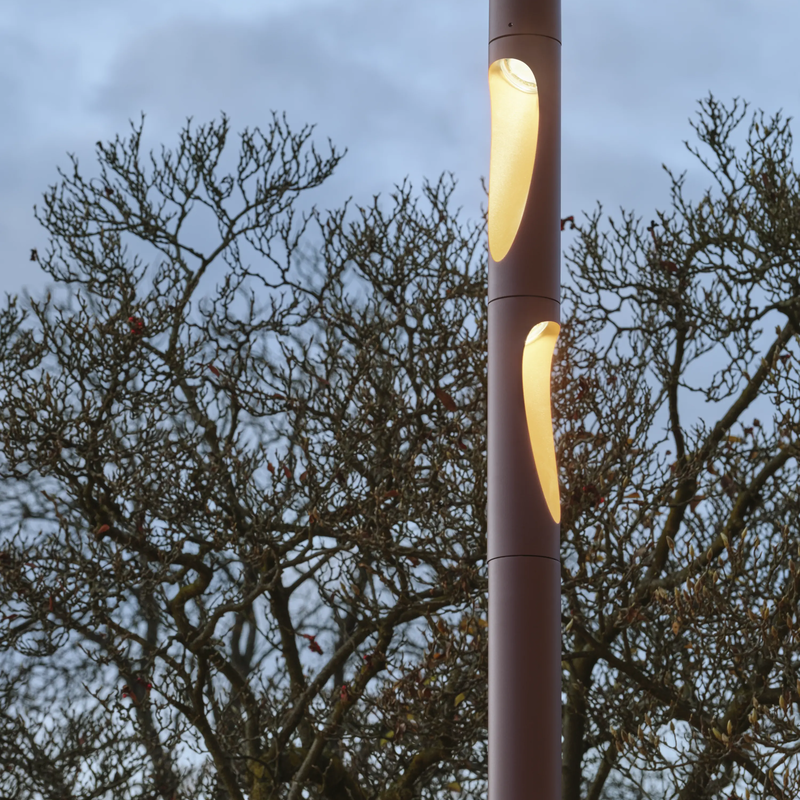

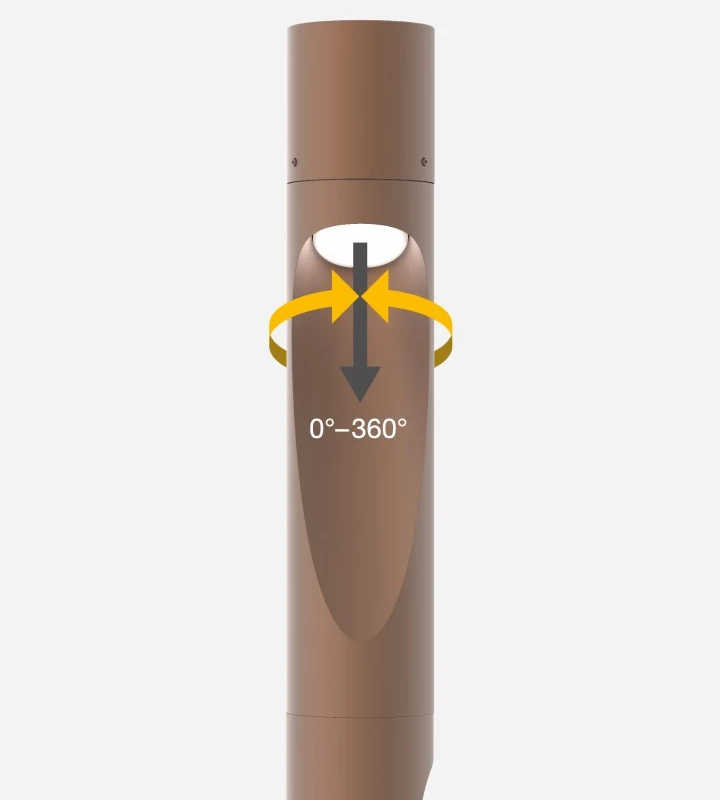

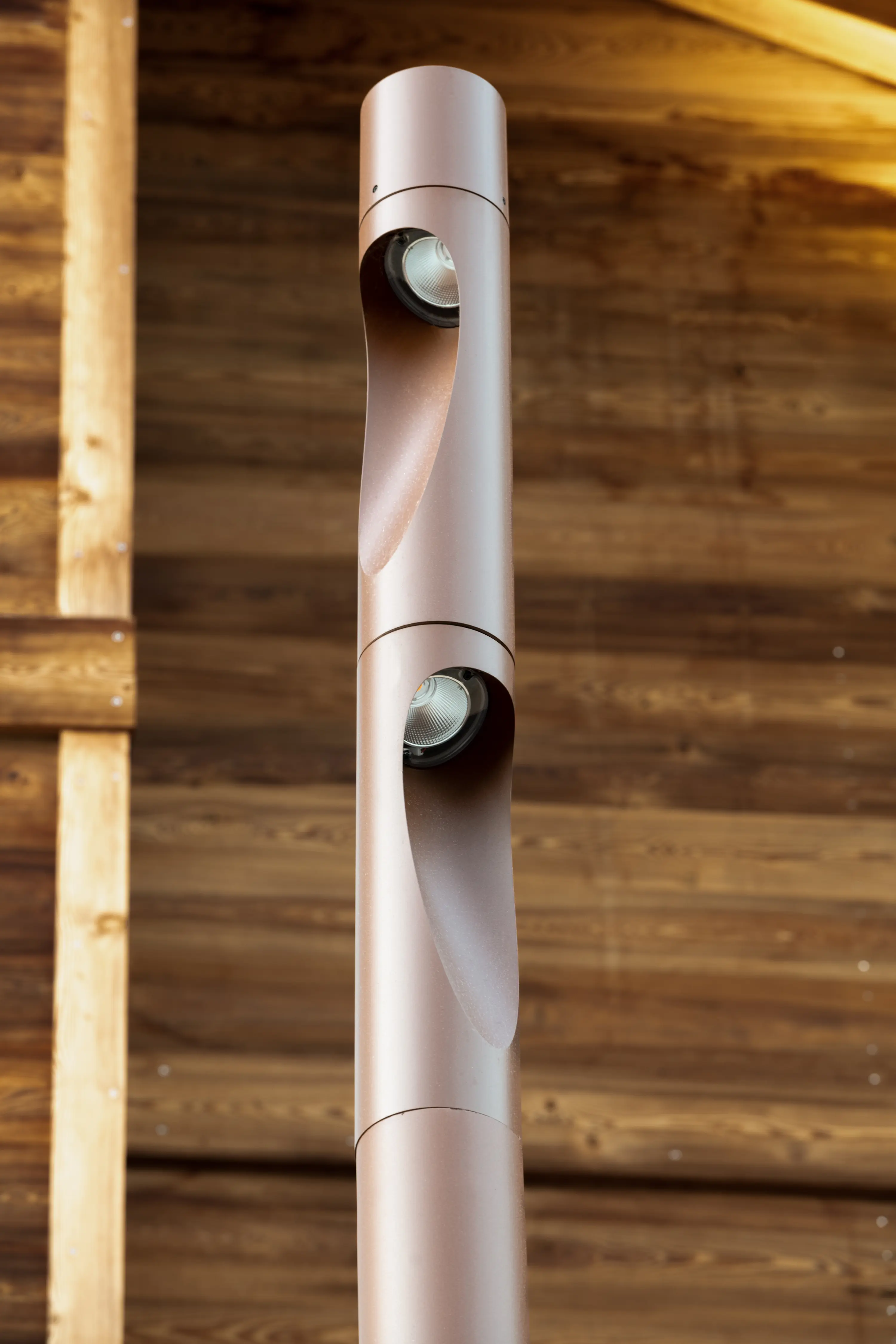

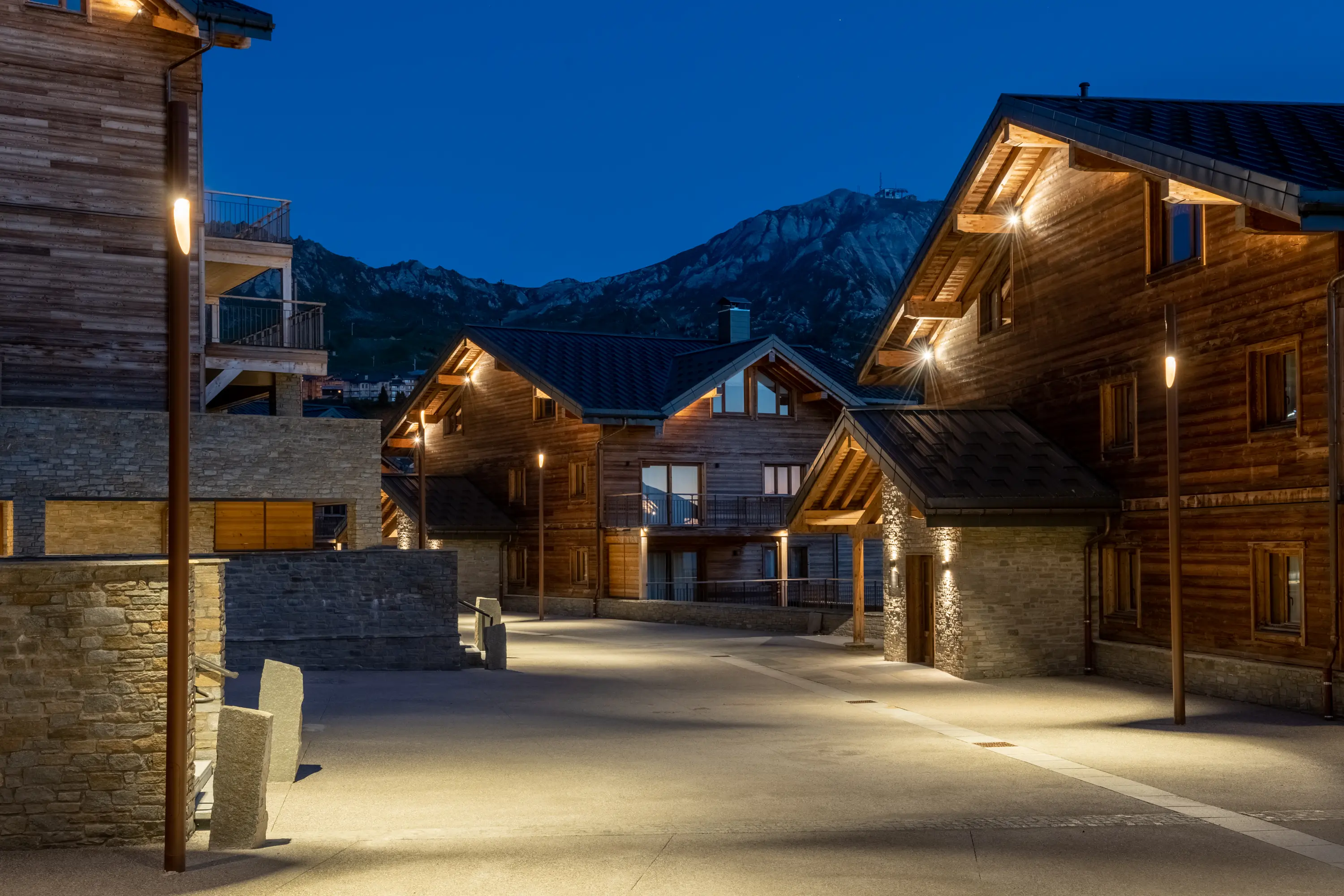

The fixture emits a glare-free downward directed light. The light source is hidden at the top, inside the asymmetric carving on the side of the post, where the gradient serves as a reflector that softens the light and forms a pleasant organic shape on the ground below. The light distribution is aimable with plus/minus 5° vertical and 359° horizontal. The modular design allows the stacking of up to five light sections on a 12 FT pole.
- CompliancecULus, Wet location.Other information

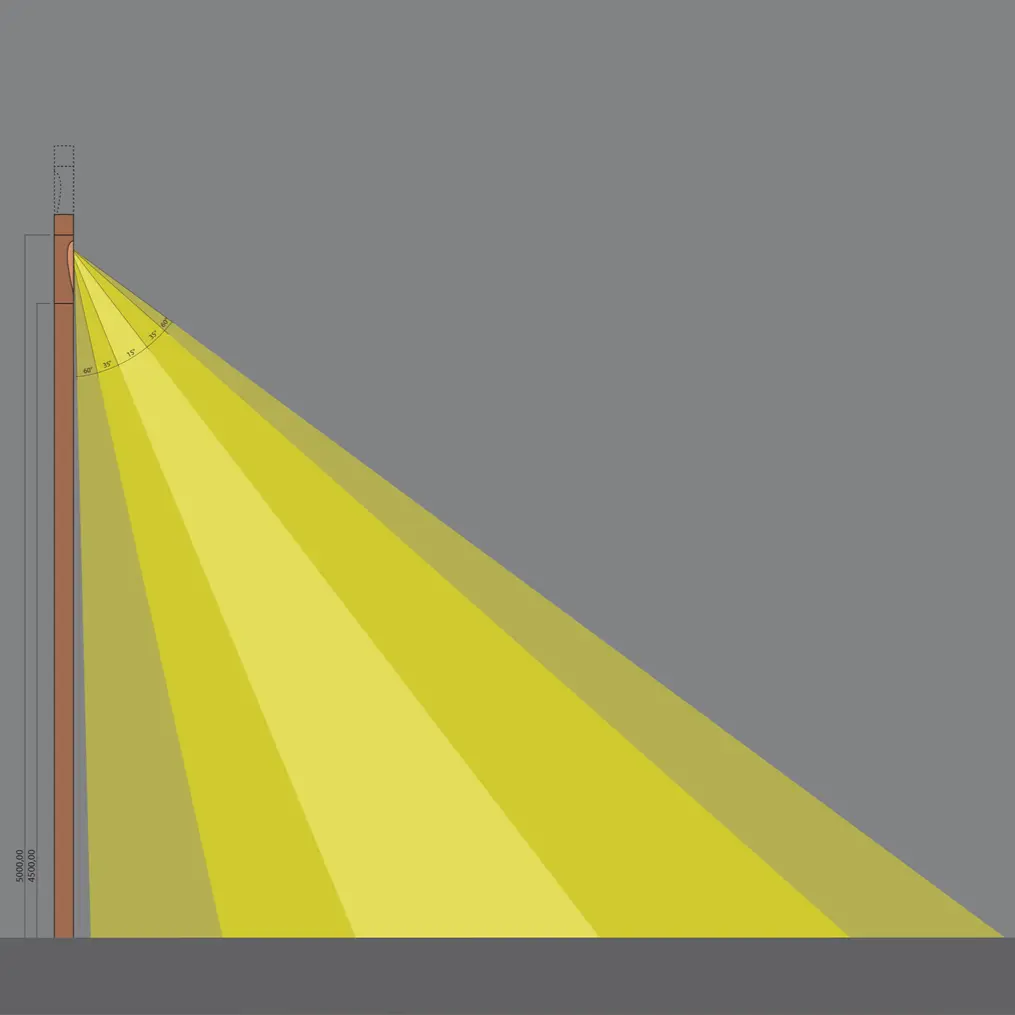

37W integral LED with driver per lighted section. 2700K, 3000K, 4000K. Consult factory for Amber (490 nm). RA≥ 80. 120-277V. Beamspreads: 15°, 35°, 60° Standard posts are 8’, 10, or 12’ tall. Top is 5.9” tall. Maximum of 5 rotatable heads or spacers in any combination. 19.7” tall each Delivered lumens 1,828-3,333 lm.
Controllability: Dimming 0-10V or NEMA/ANSI 136.41 twist-lock socket (on top).
Smart City compatible.
Wind load: 1.0 sf per light section.
Five element stack on 12’ pole meets AASHTO 2013 150mph wind one standard.
Certifications: cULus Listed, Wet Location, IK10, IP65, 0-10V dimmable, RoHS EU 2015/863 compliant
Consult factory for optional glare reducing honeycomb louver add-on.
- MaterialsTop/Head/Spacer/Base plate: die-cast aluminum. Post: extruded aluminum. Diffusor: UV stabilized polycarbonate.FinishTextured, powder coated paint in Natural Aluminum, Corten, or Black.
Weight:0.5 lbs- This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused. Louis Poulsen is part of ELRETUR which ensures that electronic waste (WEEE) across of Europa is reused. This product must be treated as electronic waste. The product is packaged in a fabric bag and a cardboard box. The cardboard is made from min. 75% recycled fibremass. Additional cardboard material comes from FSC approved sources.Download environmental product information

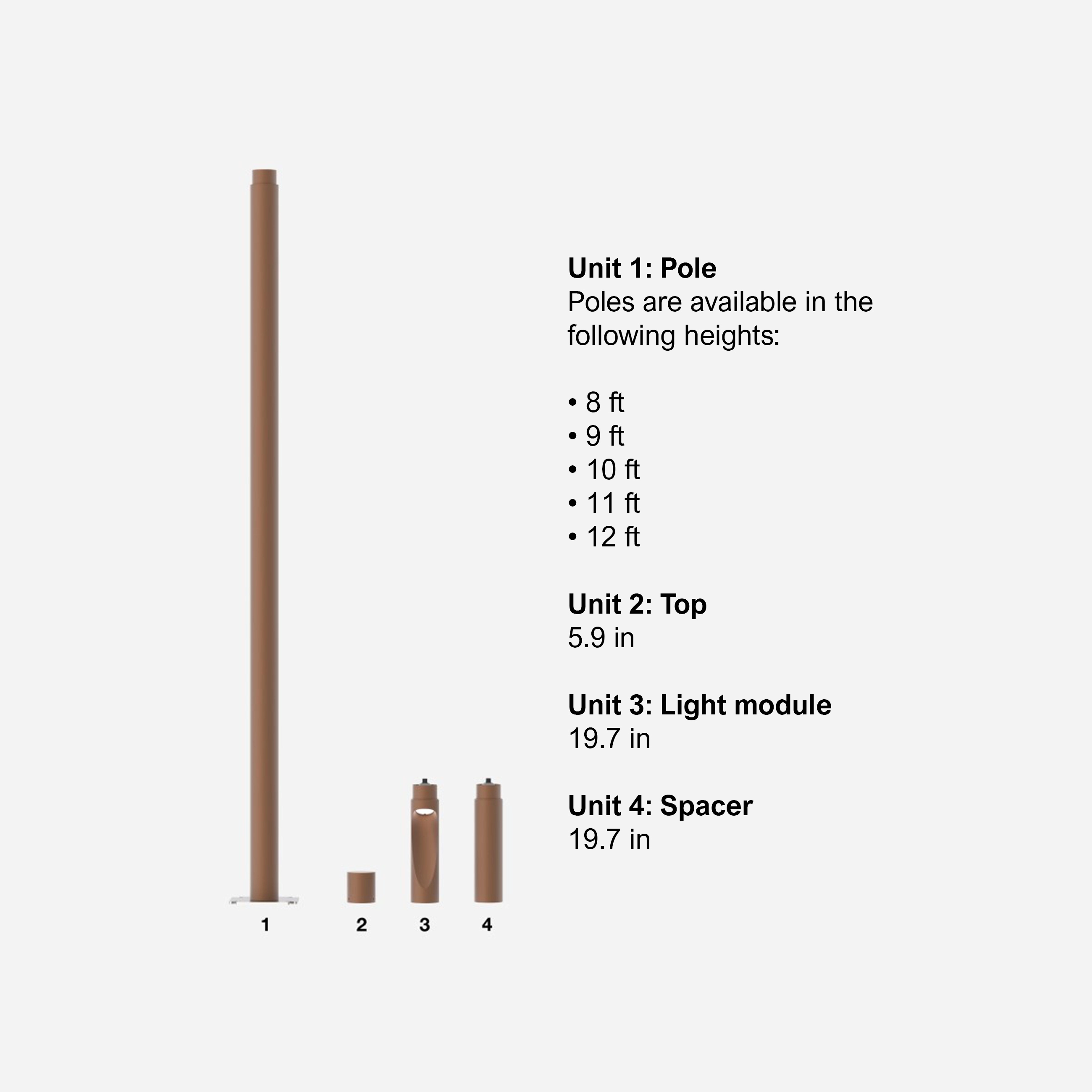

- Stackable (up to 5) and rotatable light sections, or spacers provided with connectors on an 8’, 10’ or 12’ post. Base plate mounts to a concrete base with (4) anchor bolts (provided). Base plate cover is 14” diameter. For mounting instructions see download section of the product detail page.Mounting instructions
- FLINDT PLAZA REFLECTOR 15DItem no:5747404249002$ 50FLINDT PLAZA REFLECTOR 35DItem no:5747404252002$ 50FLINDT PLAZA HONEYCOMBItem no:5747404265002$ 30
Cable
Variant numberCorten Color - 5747926620 Top
Variant numberCorten Color - 5747404207 Natural Paint Aluminum - 5747404210 Black Texture - 5747410932 Black Texture - FOR SR NEMA 5747932261 Light module
Variant numberCorten Color LED 2700K 2872 DIM 0-10V 5747932287 Corten Color LED 3000K 2994 DIM 0-10V 5747932290 Corten Color LED 4000K 3071 DIM 0-10V 5747932300 Corten Color LED 2700K 2838 DIM 0-10V 5747932313 Corten Color LED 3000K 2958 DIM 0-10V 5747932326 Corten Color LED 4000K 3035 DIM 0-10V 5747932339 Corten Color LED 2700K 2966 DIM 0-10V 5747932342 Corten Color LED 3000K 3092 DIM 0-10V 5747932355 Corten Color LED 4000K 3173 DIM 0-10V 5747932368 Natural Paint Aluminum LED 2700K 2938 DIM 0-10V 5747932371 Natural Paint Aluminum LED 3000K 3063 DIM 0-10V 5747932384 Natural Paint Aluminum LED 4000K 3142 DIM 0-10V 5747932397 Natural Paint Aluminum LED 2700K 2850 DIM 0-10V 5747932407 Natural Paint Aluminum LED 3000K 2971 DIM 0-10V 5747932410 Natural Paint Aluminum LED 4000K 3048 DIM 0-10V 5747932423 Natural Paint Aluminum LED 2700K 2841 DIM 0-10V 5747932436 Natural Paint Aluminum LED 3000K 2962 DIM 0-10V 5747932449 Natural Paint Aluminum LED 4000K 3039 DIM 0-10V 5747932452 Black Texture LED 2700K 3029 DIM 0-10V 5747932465 Black Texture LED 3000K 3157 DIM 0-10V 5747932478 Black Texture LED 4000K - DIM 0-10V 5747932481 Black Texture LED 2700K 2991 DIM 0-10V 5747932494 Black Texture LED 3000K 3118 DIM 0-10V 5747932504 Black Texture LED 4000K 3198 DIM 0-10V 5747932517 Black Texture LED 2700K 2873 DIM 0-10V 5747932520 Black Texture LED 3000K 2996 DIM 0-10V 5747932533 Black Texture LED 4000K 3074 DIM 0-10V 5747932546 Spacer
Variant numberBlack Texture - 5747932821 Corten Color - 5747932834 Natural Paint Aluminum - 5747932847 Pole
Variant number10 FT Natural Aluminium Textured - GFCI REC2 5747934887 10 FT Natural Aluminium Textured - 5747934890 10 FT Black Texture - GFCI REC2 5747934900 10 FT Black Texture - 5747934913 10 FT Corten Color - GFCI REC2 5747934926 10 FT Corten Color - 5747934939 12 FT Natural Aluminium Textured - GFCI REC2 5747934942 12 FT Natural Aluminium Textured - 5747934955 12 FT Black Texture - GFCI REC2 5747934968 12 FT Black Texture - 5747934971 12 FT Corten Color - GFCI REC2 5747934984 12 FT Corten Color - 5747934997 14 FT Natural Aluminium Textured - GFCI REC2 5747935006 14 FT Natural Aluminium Textured - 5747935019 14 FT Black Texture - GFCI REC2 5747935022 14 FT Black Texture - 5747935035 14 FT Corten Color - GFCI REC2 5747935048 14 FT Corten Color - 5747935051 8 FT Natural Aluminium Textured - GFCI REC2 5747939824 8 FT Natural Aluminium Textured - 5747939837 8 FT Black Texture - GFCI REC2 5747939840 8 FT Black Texture - 5747939853 8 FT Corten Color - GFCI REC2 5747939866 8 FT Corten Color - 5747939879 - Mounting instructionsRevitDXFULDLight measurements3D Model
