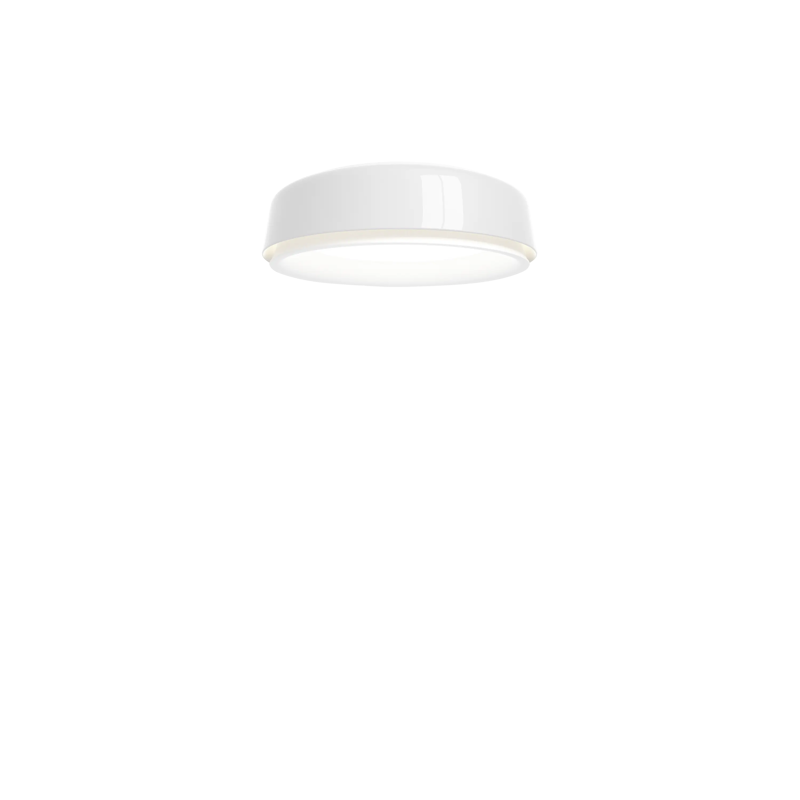

LP Grand Surface Mounted
Design by
Christian FlindtProduct family
LP grandColorWhite
$ 3,060
Estimated delivery time: >8 weeks. Contact Customer Service
Lightsource: Built in LED
Free shipping
Free returns
About the LP Grand Surface Mounted

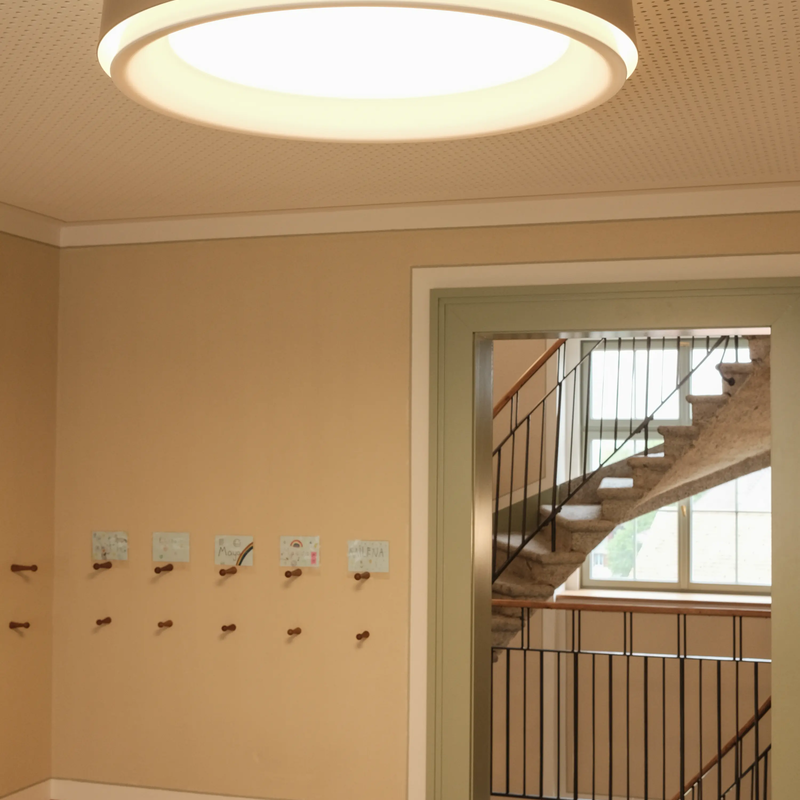

The circular luminaire emits a combination of softly diffused, glare-free, downwardly directed light and reflected indirect light from its curved upper rings. A large angled reflector encircles the diffuser and reduces the contrast around the edge. The top reflector is perfectly curved to distribute uplight at a broad angle. A colored outer shade surrounds the reflector and creates an interreflection of light, resulting in a graceful glow on the outside of the top and bottom reflectors. In total, it creates four rings of light surrounding the central diffuser.
- Light sourceLight source LED 3000KLumen: 5354CompliancecULus, Damp location.Other informationElectrical: System Wattage: 12W, 60W, 113W or 200W LED Wattage: 10W, 55W, 108W or 184W Delivered lumens: 1,052 - 22,529 Efficacy: 88 lm/W - 112.6 lm/W Certifications: cULus, Damp Location Protection class IP20 Controllability: 0-10V Dimming all sizes; Phase dimming on 12.6" size Color Rendering: Ra≥90
- Materials12.6": Top reflector: ABS. Bottom reflector: ABS. Outer shade: ABS. Housing: Die-cast Aluminum. Diffusor: PMMA. 22.8": Top reflector: ABS. Bottom reflector: PE. Outer shade: ABS. Housing: ABS. Diffusor: PMMA. 34.6": Top reflector: PE. Bottom reflector: PE. Outer shade: ABS. Housing: ABS. Diffusor: PMMA. 58.3": Top reflector: PE. Bottom reflector: PE. Outer shade: ABS. Housing: ABS. Diffusor: PMMA.Finish
Matte Black, Matte Champagne, or Glossy White, wet painted. Matte white satin finish reflector. Glossy diffuser.
Size (in.): 580 (width) x 160 (Height) x 580 (Length)Weight:19.2 lbs- This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused. Louis Poulsen is part of ELRETUR which ensures that electronic waste (WEEE) across of Europa is reused. This product must be treated as electronic waste. The product is packaged in a fabric bag and a cardboard box. The cardboard is made from min. 75% recycled fibremass. Additional cardboard material comes from FSC approved sources.Download environmental product information
- 12.6"/22.8": Mounted directly to finished surface over a recessed 4” octagonal junction box.Mounting instructions
- LP GRAND 320 FRONT PART W DIFFUSERItem no:5741108729002$ 250LP GRAND 580 REPLACEM KIT LED 35K UPL USItem no:5741913448002$ 380LP GRAND 880 REPLACEM KIT LED 35K UPL USItem no:5741913451002$ 665
See full family
Similar Products
Surface lamps
You might also like
- Variant number
22.8" White LED 3000K 5354 DIM 0-10V 5742911902 22.8" Champagne LED 3000K 5354 DIM 0-10V 5742911915 22.8" Black LED 3000K 5354 DIM 0-10V 5742911928 34.6" White LED 3000K 11021 DIM 0-10V 5742911931 34.6" Champagne LED 3000K 11021 DIM 0-10V 5742911944 34.6" Black LED 3000K 11021 DIM 0-10V 5742911957 58.3" White LED 3000K 21585 DIM 0-10V 5742911960 58.3" Champagne LED 3000K 21585 DIM 0-10V 5742911973 58.3" Black LED 3000K 21585 DIM 0-10V 5742911986 22.8" White LED 3500K 5547 DIM 0-10V 5742911999 22.8" Champagne LED 3500K 5547 DIM 0-10V 5742912008 22.8" Black LED 3500K 5547 DIM 0-10V 5742912011 34.6" White LED 3500K 11418 DIM 0-10V 5742912024 34.6" Champagne LED 3500K 11418 DIM 0-10V 5742912037 34.6" Black LED 3500K 11418 DIM 0-10V 5742912040 58.3" White LED 3500K 22362 DIM 0-10V 5742912053 58.3" Champagne LED 3500K 22362 DIM 0-10V 5742912066 58.3" Black LED 3500K 22362 DIM 0-10V 5742912079 12.6" White LED 2700K 1052 PHASE+DIM 0-10V 5741939244 12.6" Champagne LED 2700K 1052 PHASE+DIM 0-10V 5741939257 12.6" Black LED 2700K 1052 PHASE+DIM 0-10V 5741939260 12.6" White LED 3000K 1151 PHASE+DIM 0-10V 5741939309 12.6" Champagne LED 3000K 1151 PHASE+DIM 0-10V 5741939312 12.6" Black LED 3000K 1151 PHASE+DIM 0-10V 5741939325 12.6" White LED 4000K 1166 PHASE+DIM 0-10V 5741939367 12.6" Champagne LED 4000K 1166 PHASE+DIM 0-10V 5741939370 12.6" Black LED 4000K 1166 PHASE+DIM 0-10V 5741939383 - Sales drawingsMounting instructionsRevitDXFFBXDWGULDLight measurements3D Model
