LP Circle Surface Mounted
LP Circle Surface Mounted

LP Circle Surface Mounted

Design by
Mikkel Beedholm/KHR Architecture
ColorBlack
$ 1,010
Estimated delivery time: >8 weeks. Contact Customer Service
Lightsource: Built in LED
Free shipping
Free returns
Product spec sheetProfessional tools

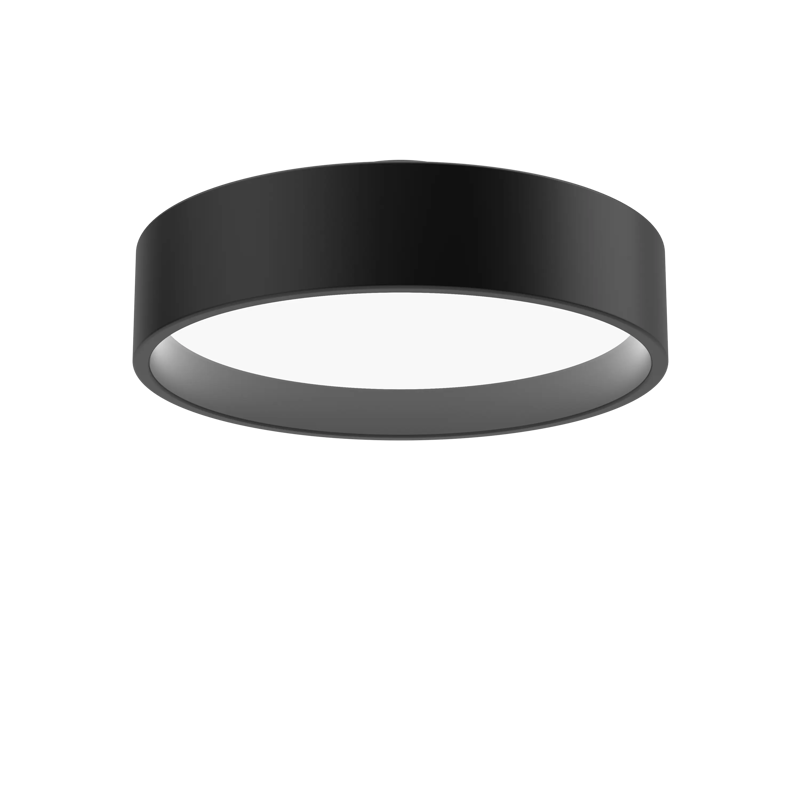

About the LP Circle Surface Mounted

The basic idea for LP Circle were born out of the experience with the Ørestad School OreLED fixture. Mikkel Beedholm of KHR arkitekter explains the design idea: “The aim was for the fixture to not simply slice through the ceiling like a tin can – we wanted the collar to give the fixture character and interplay with the building’s architecture, adding an extra dimension to the interior through randomised reflection of the light. The choice of colors has also been unusual for a ceiling fixture. The colored rings improves the effect of reducing glare and highlighting the shape of the luminaire. They also add color to what are often colorless rooms, in both their lit and unlit state.”

  • The fixture emits diffused light via a high-efficiency acrylic diffuser. The diffuser, which is encircled by a voluminous colored or white ring, is hidden when viewed from low angles. Angling the inner side of the reflector ring 5° creates a comfortable and decorative graduation of the light from the diffuser. The luminaire “floats” below the ceiling, creating a visual lightness.

  • Light sourceLight source LED 3000K V3Lumen: 1065
    CompliancecULus, Damp location.
    Other informationElectrical: System Wattage: 17W or 30W LED Wattage: 16 W or 28 W Delivered lumens: 1,020 - 2,424 Efficacy: 60.0 lm/W - 80.8 lm/W Certifications: cULus, Damp Location Protection class IP20 Controllability: 0-10V Dimming Color Rendering: Ra≥90
  • MaterialsReflector and top cover: Deep drawn aluminum. Diffuser: Acrylic, frosted or micro prismatic.  Installation frame: Galvanized steel brackets.
    FinishWhite, black, pale petroleum, or yellow. Powder coated.

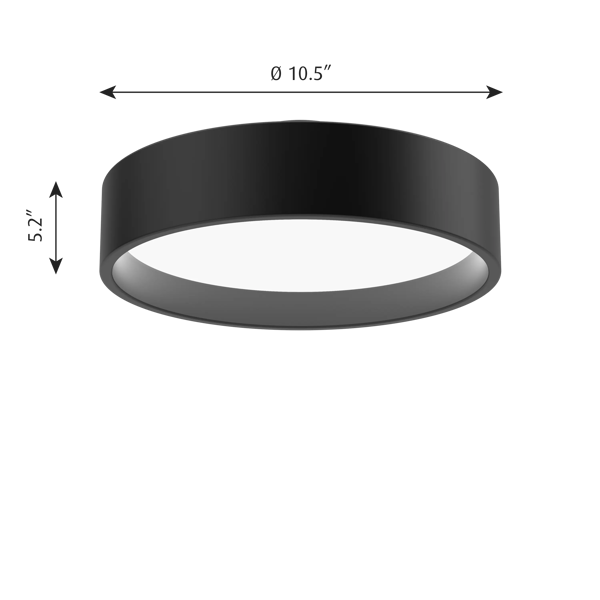

  • LP Circle Surface Mounted dimensions
    Size (in.): 267 (width) x 132 (Height) x 267 (Length)
    Weight:7.8 lbs
  • This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused. Louis Poulsen is part of ELRETUR which ensures that electronic waste (WEEE) across of Europa is reused. This product must be treated as electronic waste. The product is packaged in a fabric bag and a cardboard box. The cardboard is made from min. 75% recycled fibremass. Additional cardboard material comes from FSC approved sources.Download environmental product information
  • Surface: Mounted directly to finished surface over a recessed 4” octagonal junction box.Mounting instructions
  • CIRCLE Ø450 PRISMATIC DIFF SP
    Item no:5742583644002
    $ 285
    CIRCLE Ø260 DIFFUSER OPAL
    Item no:5742583657002
    $ 190
    CIRCLE Ø450 DIFFUSER OPAL
    Item no:5742583660002
    $ 250

  • Variant number
    10.3"BlackLED 3000K V31065OPAL5742915157
    10.3"Pale PetroleumLED 3000K V31126OPAL5742915160
    10.3"WhiteLED 3000K V31334OPAL5742915173
    10.3"YellowLED 3000K V31232OPAL5742915186
    10.3"BlackLED 3500K V3-OPAL5742915199
    10.3"Pale PetroleumLED 3500K V3-OPAL5742915209
    10.3"WhiteLED 3500K V3-OPAL5742915212
    10.3"YellowLED 3500K V3-OPAL5742915225
    10.3"BlackLED 4000K V31099OPAL5742915238
    10.3"Pale PetroleumLED 4000K V31162OPAL5742915241
    10.3"WhiteLED 4000K V31377OPAL5742915254
    10.3"YellowLED 4000K V31272OPAL5742915267
    17.7"BlackLED 3000K V32341OPAL5742915319
    17.7"Pale PetroleumLED 3000K V32432OPAL5742915322
    17.7"WhiteLED 3000K V32706OPAL5742915335
    17.7"YellowLED 3000K V32577OPAL5742915348
    17.7"BlackLED 3500K V32341OPAL5742915351
    17.7"Pale PetroleumLED 3500K V32432OPAL5742915364
    17.7"WhiteLED 3500K V32706OPAL5742915377
    17.7"YellowLED 3500K V32577OPAL5742915380
    17.7"BlackLED 4000K V32417OPAL5742915393
    17.7"Pale PetroleumLED 4000K V32510OPAL5742915403
    17.7"WhiteLED 4000K V32793OPAL5742915416
    17.7"YellowLED 4000K V32510OPAL5742915429
    10.3"BlackLED 3000K V3-PRISMATIC5742915487
    10.3"Pale PetroleumLED 3000K V3-PRISMATIC5742915490
    10.3"WhiteLED 3000K V3-PRISMATIC5742915500
    10.3"YellowLED 3000K V3-PRISMATIC5742915513
    10.3"BlackLED 3500K V3-PRISMATIC5742915526
    10.3"Pale PetroleumLED 3500K V3-PRISMATIC5742915539
    10.3"WhiteLED 3500K V3-PRISMATIC5742915542
    10.3"YellowLED 3500K V3-PRISMATIC5742915555
    10.3"BlackLED 4000K V3-PRISMATIC5742915568
    10.3"Pale PetroleumLED 4000K V3-PRISMATIC5742915571
    10.3"WhiteLED 4000K V3-PRISMATIC5742915584
    10.3"YellowLED 4000K V3-PRISMATIC5742915597
    17.7"BlackLED 3000K V32088PRISMATIC5742915649
    17.7"Pale PetroleumLED 3000K V32157PRISMATIC5742915652
    17.7"WhiteLED 3000K V32372PRISMATIC5742915665
    17.7"YellowLED 3000K V32276PRISMATIC5742915678
    17.7"BlackLED 3500K V32088PRISMATIC5742915681
    17.7"Pale PetroleumLED 3500K V32157PRISMATIC5742915694
    17.7"WhiteLED 3500K V32372PRISMATIC5742915704
    17.7"YellowLED 3500K V32276PRISMATIC5742915717
    17.7"BlackLED 4000K V32155PRISMATIC5742915720
    17.7"Pale PetroleumLED 4000K V32227PRISMATIC5742915733
    17.7"WhiteLED 4000K V32449PRISMATIC5742915746
    17.7"YellowLED 4000K V32349PRISMATIC5742915759
